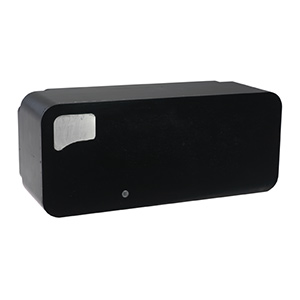

Plastic Pocket/In-hull Mount Transducer with Depth & Temperature - Airmar R111LH

Part Number 010-11643-20

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

This in-hull or pocket mounted transducer uses narrow beams at low/high frequencies to display depth and temperature data to your Garmin Marine Network via your sonar, such as the GSD 26.

Designed to allow both traditional and Spread Spectrum scanning, this 2 kW barewire, plastic transducer has a maximum depth of 8,000 ft; an operating frequency of 38 to 75 kHz and 130 to 210 kHz; and a beamwidth of 10x19 degrees. The in-hull mounts on a 0-25° deadrise angle; the pocket mount is installation dependent.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

¹In-hull not recommended for cored-hull vessels

General
Transducer frequency	CHIRP Low (38-75 kHz) & CHIRP High (130-210 kHz)
Transducer power	2 kW
Transducer beamwidth	10°x19°/4°-8°
Transducer maximum depth	6,000 ft.
Transducer cable length	49 ft.
Transducer depth/speed/temperature	Depth and Temperature
Transducer number of pins	Bare wires
Transducer supported deadrise/transom angles	0°-25° degree deadrise
