JL Audio M6 Marine Subwoofer

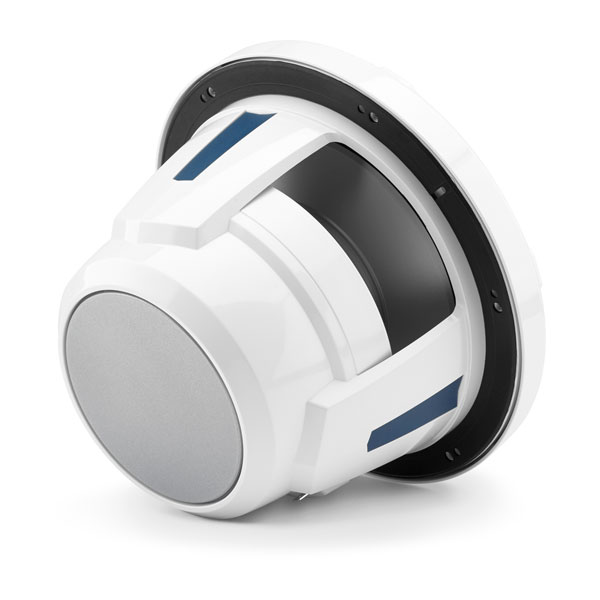

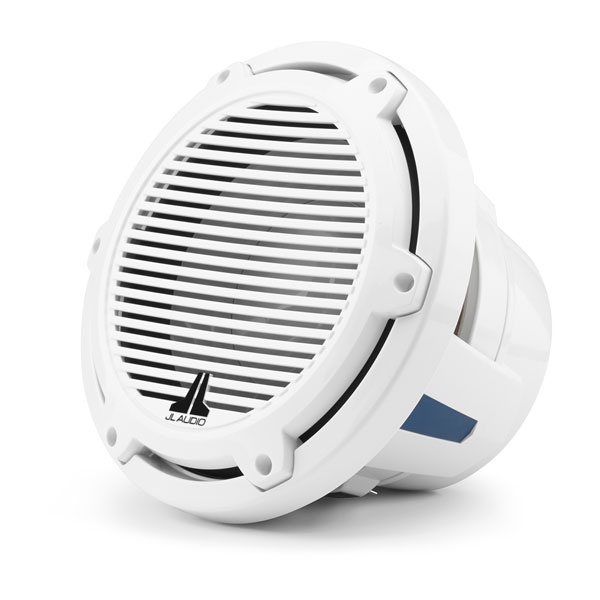

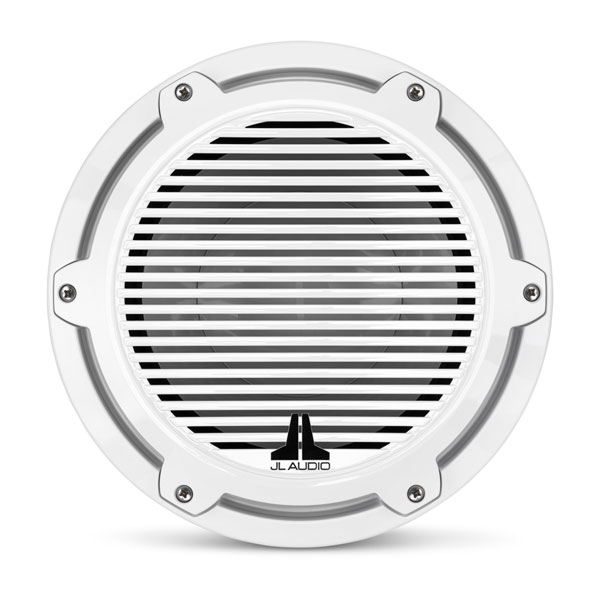

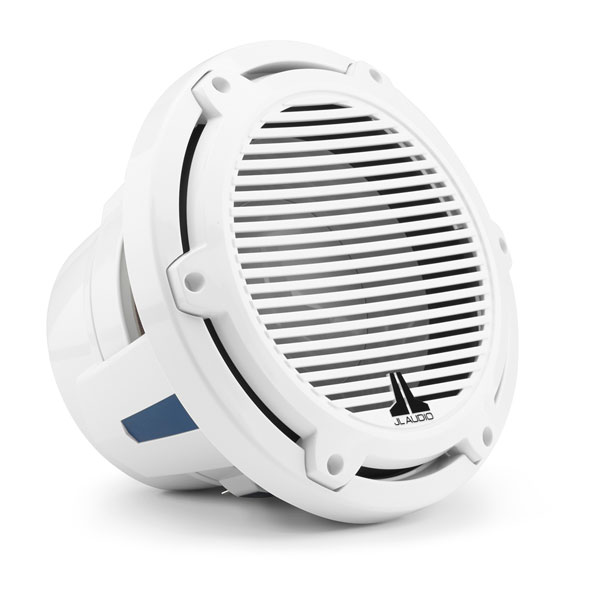

10" with White Classic Grille (M6-10W-C-GwGw-4)

Part Number 010-03487-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

MAXIMUM PERFORMANCE

Optimized for high-powered operation, M6 marine subwoofers can be installed in various applications and are built to withstand the rigors of marine use.

DELIVERS POWERFUL DEEP BASS IN OPEN-AIR APPLICATIONS

MODELS FOR USE WITH OR WITHOUT A DEDICATED ENCLOSURE

GRILLE AND TRIM RING ARE EASILY REMOVABLE FOR PAINTING

MODELS AVAILABLE WITH PATENTED LED ILLUMINATION

EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

3-YEAR WARRANTY

WHAT YOU'LL LOVE

WORLD-CLASS PERFORMANCE

This bass will impress you, not only with its sheer level but even more with its smoothness, balance and precision.

MODEL SPECIFIC

These specialized versions are made for specific applications and optimized to perform in compact enclosures or in infinite baffle installations without dedicated enclosures.

POWERFULLY EFFICIENT

M6 marine subwoofers are designed to benefit from operation with quality amplification.

DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

REAL MARINE DUTY

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

TRANSFLECTIVE RGB LED LIGHTING

Get a patented system on sport models for smooth lighting with no hot spots or reflections.

General
Warranty	3 years
Sizes	8"/10"
Color	White Classic, White Sport or Titanium Sport or Luxe Satin Black or Luxe Satin White
Physical dimensions (Diameter)	8": 8.80" (224 mm) 8" (Luxe): 10.25" (260 mm) 10": 10.75" (273 mm) 10" (Luxe): 12.54" (319 mm)
Physical dimensions (Depth)	8" (Classic): 6.37" (162 mm) 8" (Sport): 6.45" (164 mm) 8" (Luxe): 6.78" (172 mm) 10": 7.56" (192 mm) 10" (Luxe): 7.53" (191 mm)
Weight	8": 8.70 lbs (3.90 kg) 10": 12.60 lbs (5.70 kg) 10" (Luxe): 13.2 lbs (6.0 kg)
Speaker type	Infinite Baffle or Enclosed-use Subwoofer
Continuous power handling (RMS)	8": 200 W 10": 250 W
Sensitivity (SPL @ 1 W/1 m)	8": 86.8 dB 10" (IB): 86.1 dB 10" (W): 86.4 dB
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	8": 50-200 W 10": 75-250 W
LED lighting	yes - Transflective™ (selected Sport models only)
LED supply voltage	10-14.4 VDC
LED Load Current @ 14.4 VDC (max)	8": 486 mA 10": 594 mA
Cone material	Injection-molded, mica-filled polypropylene
Networking & Connections
Speaker connections	Spade Connectors
LED connection	Flying Lead with 4-conductor 20 AWG wire (selected Sport models only)
Mounting Dimensions
Mounting diameter clearance	8" (Classic/Sport): 5" (127 mm) 8" (Luxe): 6.30" (160 mm) 10" (Classic/Sport): 5.90" (150 mm) 10" (Luxe): 6.98" (177 mm)
Frontal grille protrusion	8" (Classic): 1.37" (35 mm) 8" (Sport): 1.45" (37 mm) 8" (Luxe): 0.48" (12 mm) 10" (Classic/Sport): 1.66" (42 mm) 10" (Luxe): 0.55" (14 mm)
Mounting hole	8" (Classic/Sport): 7.375" (187 mm) 8" (Luxe): 8.625" (219 mm) 10" (Classic/Sport): 8.875" (225 mm) 10" (Luxe): 10.5625" (268 mm)
Bolt hole circle	8" (Classic/Sport): 7.97" (202 mm) 8" (Luxe): 9.27" (235 mm) 10" (Classic/Sport): 9.70" (247 mm) 10" (Luxe): 11.46" (291 mm)
Driver displacement	8" (Classic/Sport): 0.033 cu ft (0.93 L) 8" (Luxe): 0.073 cu ft (2.07 L) 10" (Classic/Sport): 0.052 cu ft (1.47 L) 10" (Luxe): 0.099 cu ft (2.80 L)
Parameters
Free Air Resonance (FS)	8": 54.92 Hz 10" (IB): 43.76 Hz 10" (W): 34.58 Hz
Electrical “Q” (Qes)	8": 0.852 10" (IB): 0.907 10" (W): 0.522
Mechanical “Q” (Qms)	8": 10.314 10" (IB): 11.315 10" (W): 9.780
Total “Q” (Qts)	8": 0.787 10" (IB): 0.840 10" (W): 0.496
Equivalent Compliance (Vas)	8": 0.54 cu ft (15.29 L) 10" (IB): 0.98 cu ft (27.75 L) 10" (W): 1.22 cu ft (34.49 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied)	8": 0.53" (14 mm) 10" (IB/W): 0.52" (13 mm)
Reference Efficiency (NO)	0.28%
Effective piston area (SD)	8": 35.15 in² (0.0227 m²) 10" (IB/W): 50.11 in² (0.0323 m²)
DC resistance (RE)	8": 2.993 Ω 10" (IB): 4.543 Ω 10" (W): 3.619 Ω
Sealed Enclosure Specifications
Wall thickness	0.75" (19 mm)
Front baffle thickness	0.75" (19 mm)
Volume (net int.)	8"/10" (IB): 2.00 cu ft (56.6 L) 10" (W): 0.75 cu ft (21.2 L)
External width (W)	8": 16" (406 mm) 10" (IB/W): 17" (432 mm)
External height (H)	8": 16" (406 mm) 10" (IB/W): 17" (432 mm)
External depth (D)	8": 18.25" (464 mm) 10" (IB): 16.25" (431 mm) 10" (W): 7.25" (184 mm)
-3 dB cutoff frequency (F3)	8": 51.78 Hz 10" (IB): 41.54 Hz 10" (W): 50.08 Hz
System resonance (FC)	8": 61.89 Hz 10" (IB): 53.41 Hz 10" (W): 56.01 Hz
System Q at resonance (QTC)	8": 0.8869 10" (IB): 1.0253 10" (W): 0.8035
Ported Enclosure Specifications
Wall thickness	0.75" (19 mm)
Front baffle thickness	0.75" (19 mm)
Volume (net int.)	8": 1.50 cu ft (42.5 L) 10" (IB): 2.5 cu ft (70.8 L) 10: (W): 2 cu ft (56.6 L)
External width (W)	8": 16" (406 mm) 10" (IB/W): 17" (432 mm)
External height (H)	8": 16" (406 mm) 10" (IB/W): 17" (432 mm)
External depth (D)	8": 15.125" (384 mm) 10" (IB): 20.5" (676 mm) 10" (W): 13.125" (333 mm)
Internal port diameter (ID)	8": 4" (102 mm) 10" (IB): 4" (102 mm) 10" (W): 3" (76 mm)
Port length (L)	8": 13.5" (343 mm) 10" (IB): 12" (305 mm) 10" (W): 11.125" (283 mm)
Tuning frequency (FB)	8": 37 Hz 10" (IB): 30 Hz 10" (W): 31 Hz
-3 dB cutoff frequency (F3)	8": 31.26 Hz 10" (IB): 25.09 Hz 10" (W): 29.81 Hz
Additional
Additional	The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance.

8-inch Subwoofers

One marine subwoofer
One grille
Six stainless steel mounting screws
Six stainless steel washers
Grille removal tool (Luxe models only)

10-inch Subwoofers

One marine subwoofer
One grille
Six stainless steel mounting screws
Six stainless steel washers
Grille removal tool (Luxe models only)
