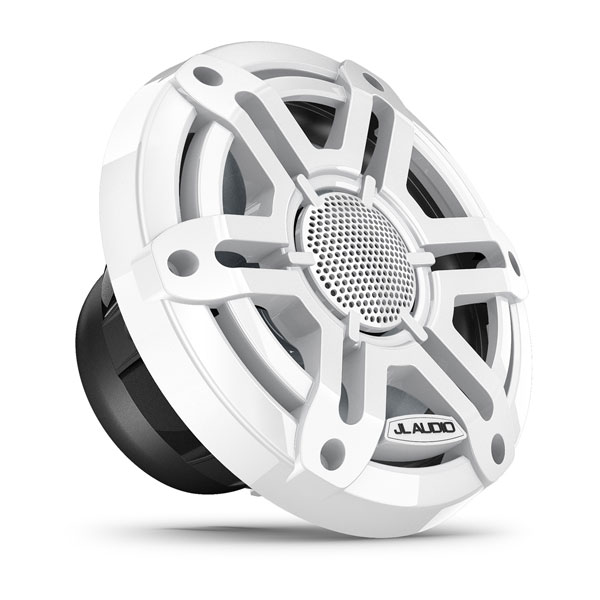

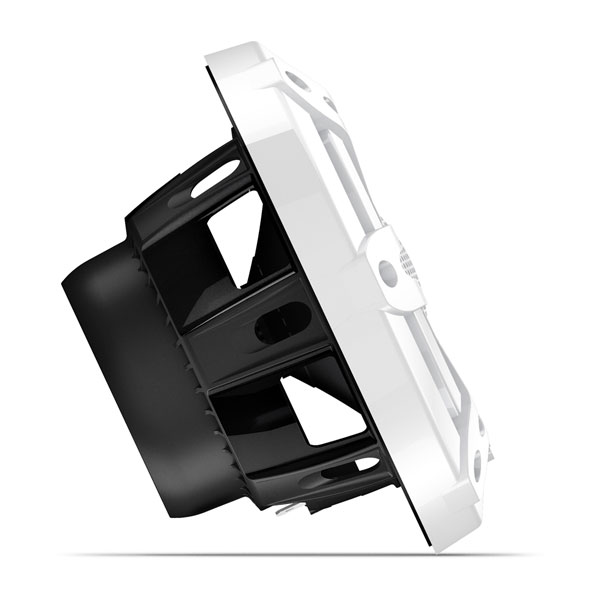

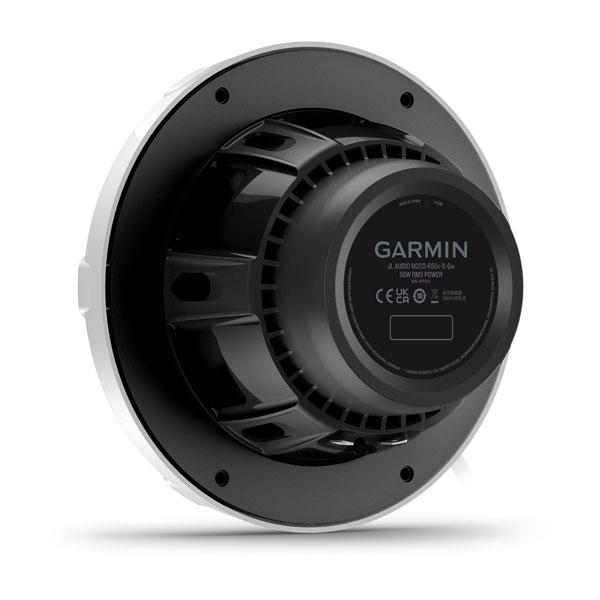

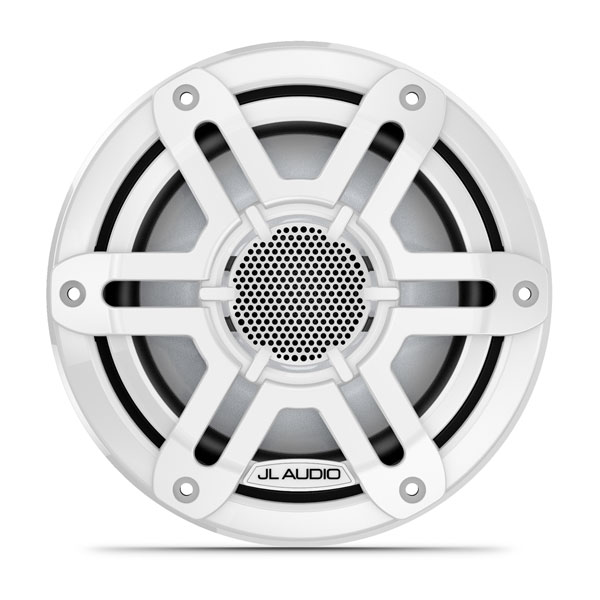

JL Audio M200 Marine Speakers

Part Number 010-04753-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

STUNNING MARINE DESIGN MEETS HIGH-PERFORMANCE SOUND

Enhance your experience on the water with JL Audio M200 speakers, which bring M-series audio for less.

CHOOSE BETWEEN 6.5- OR 7.7-INCH SPEAKER SIZES

OPTIONAL RGB LED LIGHTING

SILK DOME TWEETER DELIVERS SMOOTHER SOUND

INTERCHANGEABLE GRILLE OPTIONS (SOLD SEPARATELY)

MARINE-GRADE CONSTRUCTION

WHAT YOU'LL LOVE

VERSATILE COAXIAL MARINE SPEAKERS

With 50- to 60-watt RMS power handling, these speakers deliver loud, clean sound with less distortion.

OPTIONAL RGB LED LIGHTING

Enhance your audio experience with a wide spectrum of colors. Pair with the Garmin Spectra control module (sold separately) for advanced lighting control from your compatible chartplotter or ActiveCaptain app.

SILK DOME TWEETER

A bridge-mounted 1-inch edge-driven silk dome tweeter with neodymium magnet and ferrofluid cooling delivers a smoother and warmer sound for all your cruises.

CUSTOMIZABLE GRILLE OPTIONS

Match the look of your vessel with white or gray color options along with interchangeable grilles (sold separately).

SALT AND SUN PROTECTED

Sail to your heart’s content knowing that your speakers are built from marine-grade materials and finishes with corrosion-resistant connections and circuit boards to withstand salt and sun.

General
Warranty	3 years
Sizes	6.5"/7.7"
Color	White Sport or Gray Sport
Physical dimensions (Diameter)	6.5": 6.90" (175 mm) 7.7": 7.70" (196 mm)
Physical dimensions (Depth)	6.5": 4.19" (106 mm) 7.7": 4.60" (117 mm)
Water and dust rating	IPX6
Speaker type	Coaxial
Continuous power handling (RMS)	6.5": 50 W 7.7": 60 W
Sensitivity (SPL @ 1 W/1 m)	6.5": 87 dB 7.7": 88 dB
Frequency response (+/- 3 dB)	6.5": 55 Hz - 20 KHz 7.7": 45 Hz - 20 kHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	6.5": 30 - 100 W/Channel 7.7": 40 - 120 W/Channel
LED lighting	yes (RGB; select Sport models only)
LED supply voltage	10 - 14.4 VDC
LED Load Current @ 14.4 VDC (max)	140 mA (select Sport models only)
Cone material	Injection-molded, mica-filled polypropylene
Tweeter type	Silk Dome
Tweeter size	1" (25 mm)
Electrical Features
Compass safe distance	6.5": 73" (185 cm) 7.7": 81" (205 cm)
Networking & Connections
Speaker connections	Spade connectors Flying lead with waterproof connector 18 AWG wire (selected Sport models only)
LED connection	Flying lead with waterproof connector, 4-conductor 20 AWG wire (selected Sport models only)
Mounting Dimensions
Mounting depth clearance	6.5": 2.83" (72 mm) 7.7": 3.07" (78 mm)
Frontal grille protrusion	6.5": 1.30" (33 mm) 7.7": 1.38" (35 mm)
Mounting hole	6.5": 5.00" - 5.25" (127 - 133 mm) 7.7" 6.25" (159 mm)
Bolt hole circle	6.5": 6.14" (156 mm) 7.7": 6.92" (176 mm)

One pair of speakers with grilles
Two 0.25” female crimpable connectors (non-illuminated versions only)
Two 0.185” female crimpable connectors (non-illuminated versions only)
Two water-resistant 6-pin connectors (illuminated versions only)
Mounting screws
Documentation
