Garmin GT30-THP

Garmin GT30-THP

Part Number 010-01961-11

ONLINE STORE

Images-1 Images-2

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays clear definition of objects, structure and fish below and to each side of the boat.

These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz¹; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV 10 scanning sonar module.

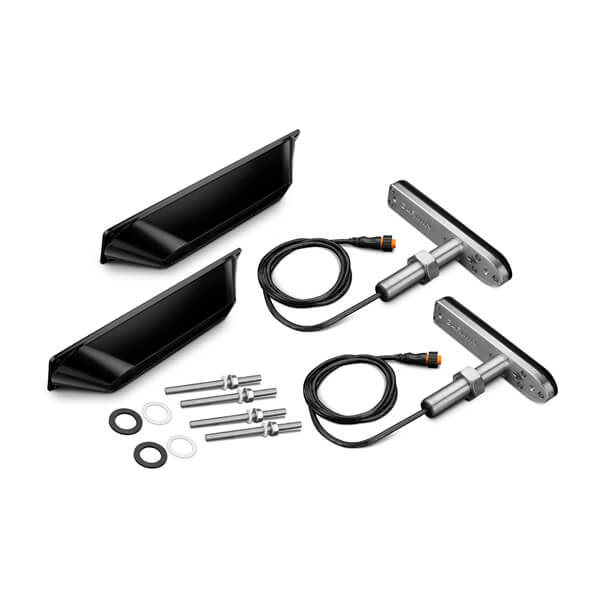

Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

¹CHIRP frequency bandwidth is 445 to 475 kHz and 805 to 840 kHz.





General

FREQUENCY ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
POWER ClearVü/SideVü 500 W
BEAMWIDTH ClearVü: 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz
SideVü: 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz
MAXIMUM DEPTH ClearVü: 750 ft.; SideVü: 500 ft.
DEPTH/SPEED/TEMPERATURE Depth and Temperature
NUMBER OF PINS 12-pin
CABLE LENGTH 5 ft. + 30 ft. y-extension cable
SUPPORTED DEADRISE/TRANSOM ANGLES Up to 25° deadrise
