Garmin GT30-TH

Garmin GT30-TH

Part Number 010-01961-10

ONLINE STORE

Images-1 Images-2 Images-3

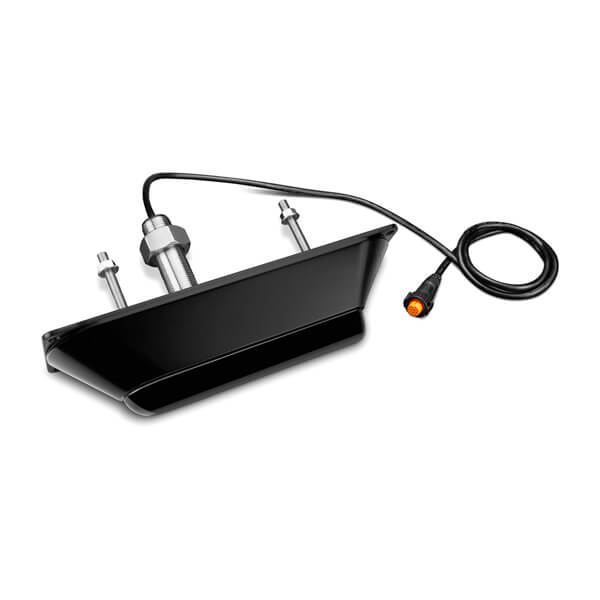

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with a stainless steel stem, this 12-pin thru-hull transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat.

The transducer with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz¹; for hull deadrises less than 5 degrees. Pair it with your GCV 10 scanning sonar module.

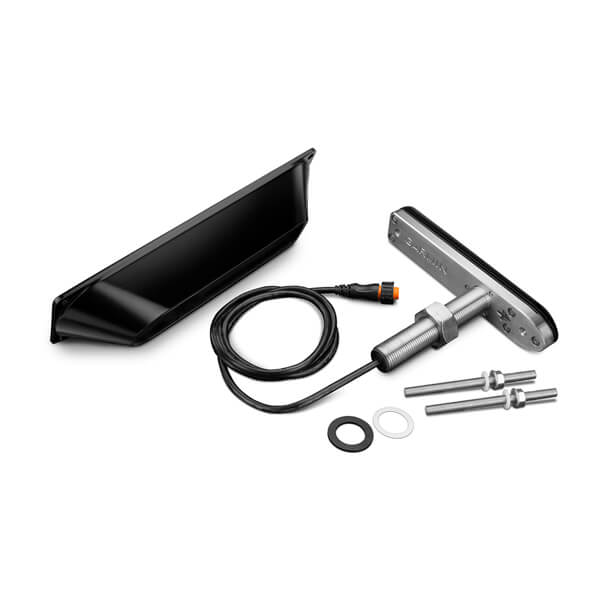

Includes transducer with stainless steel stem, fairing block, isolation plate and bushings, extension cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

¹CHIRP frequency bandwidth is 445 to 475 kHz and 805 to 840 kHz.





General

FREQUENCY ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
POWER ClearVü/SideVü 500 W
BEAMWIDTH ClearVü: 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz
SideVü: 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz
MAXIMUM DEPTH ClearVü: 750 ft.; SideVü: 500 ft.
DEPTH/SPEED/TEMPERATURE Depth and Temperature
NUMBER OF PINS 12-pin
CABLE LENGTH 5 ft. + 30 ft. y-extension cable
SUPPORTED DEADRISE/TRANSOM ANGLES Up to 25° deadrise
