Force Current

Kayak Trolling Motor

Part Number 010-02864-10

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

LEGENDARY FORCE PERFORMANCE

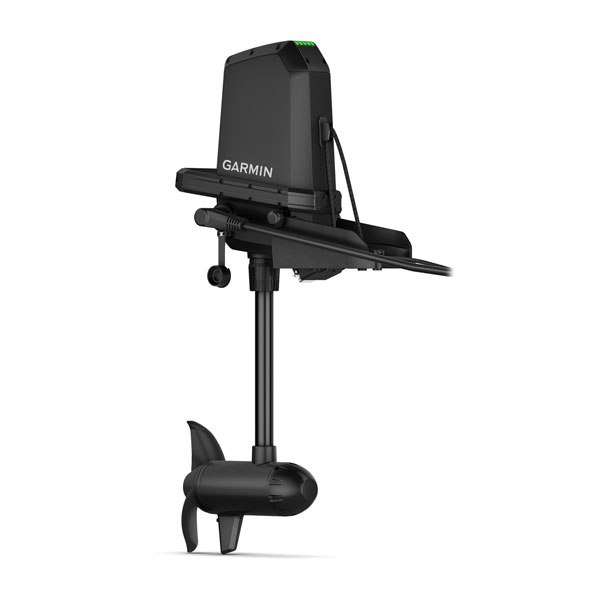

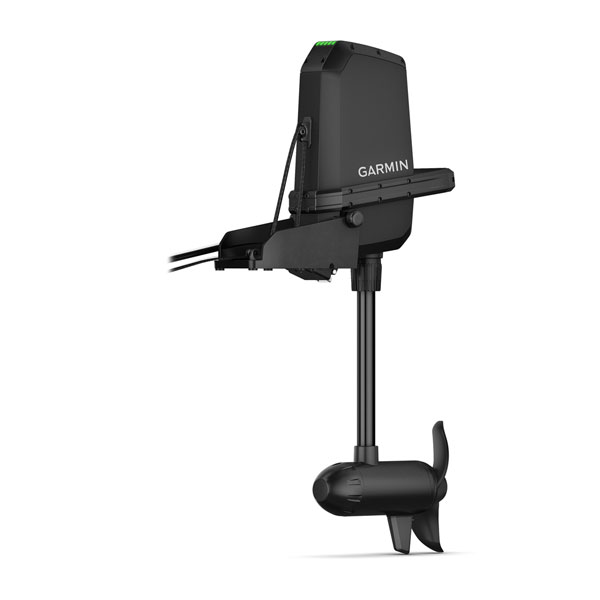

The Force Current trolling motor is engineered for kayak anglers looking for a rugged propulsion system with superior maneuverability, wireless integration, and wireless throttle and steering control.

LEGENDARY FORCE PERFORMANCE AND RELIABILITY

WIRELESS THROTTLE AND STEERING CONTROL WITH THE INCLUDED REMOTE

STAY ON THE FISH WITH ANCHOR LOCK AND MULTI-BAND GPS

SIMPLE AND INTUITIVE INSTALLATION

WIRELESS INTEGRATION WITH GARMIN CHARTPLOTTERS

WIRELESS MAN OVERBOARD TAG

WHAT YOU'LL LOVE

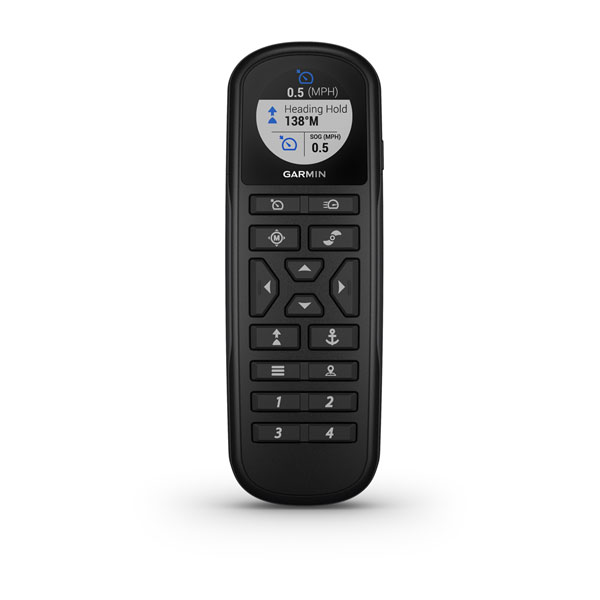

FLOATING REMOTE

Use the included remote to control throttle and steering with the wireless remote control. Want to control throttle and steering without setting the rod down? Check out the power steer pedals.

UNPRECEDENTED MANEUVERABILITY

Turn your boat quickly with full forward and reverse thrust in any direction. Weave through tight timber, turn in a tight circle, sneak along shorelines, and creep through weed beds while you fish. Use the included wireless handheld remote for point-and-go gesture steering.

CHARTPLOTTER INTEGRATION

Wireless integration with your Garmin chartplotters allows you to create routes and tracks for the trolling motor to follow while you fish. You can also adjust throttle and steering on the chartplotter control bar, adjust motor settings and more.

STAY PUT

The anchor lock technology with multi-band GPS provides our most precise boat positioning technology to help keep the boat in one place, even in windy conditions or strong current.

SAFETY FIRST

When wearing the included wireless man overboard tag, the motor cuts off if it detects you fall overboard.

POWER THAT LASTS

An efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.

TOTAL CONTROL

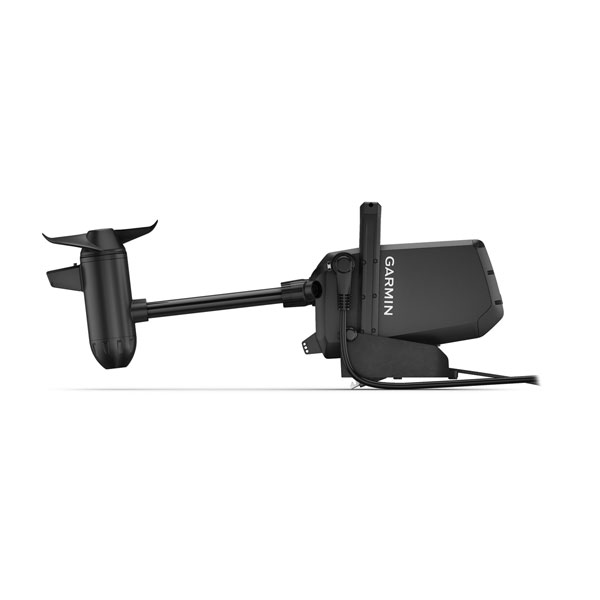

STOW AND DEPLOY

Quickly stow or deploy the prop with one hand when you need to glide over shallow areas with the included stow rope and cleat kit.

SMARTWATCH INTEGRATION

Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.

BUILT FOR KAYAKS

TWO PROP OPTIONS

Use the high-efficiency prop to maximize battery life, or the weedless prop to cut through aquatic vegetation.

INDUSTRY STANDARD

The 4-hole mounting pattern makes installation easy on many different types of kayaks. The wireless foot pedals and rail system are also designed to accommodate a wide variety of installation methods.

LOAD UP AND GO

Get on and off the water fast with simple motor and pedal installation and removal.

WHISPER QUIET

Don’t spook the fish; the motor is extremely quiet above and below the water.

RUGGED DESIGN

The sturdy alloy shaft and components are built to endure harsh saltwater and freshwater environments with advanced corrosion protection.

General
Color	black
Mount style	4-hole tilt mount
Max thrust	50 lbs (ISO13342) using high efficiency propeller at 24V 30 lbs (ISO13342) using high efficiency propeller at 12V
Voltage	12 V or 24 V
Electric steering
Built-in heading sensor
Built-in GPS	yes (dual frequency GPS)
Warranty	3-year, limited lifetime on shaft
Water rating	IPX7
Mounting location	stern
Wireless remote	yes (included)
Shaft length (from mount to top of drive motor)	16.6" (max); 11.4" (min)
Power steer foot pedals (kayak) compatible
Battery indicator
Variable speed control	yes (20 steps)
quatix remote control supported
Manual reverse control
Autopilot Features
Route following
Anchor lock
Smart Anchor Lock features
Anchor lock jog
Heading hold
Cruise control
Gesture features	yes (manual+, heading hold+, jog+)
Power Steer Foot Pedals (Kayak)
Wireless communication
Power installation	batteries (2 AA)
AA battery life	1 full season
Water rating	IPX7
Remote Features
Display size	1.2" (30.2 mm) diameter
Display resolution	240 x 240 pixels
Display type	color, sunlight-visible, transflective memory-in-pixel (MIP)
Chartplotter user-programmable keys
Autopilot feature control
Water rating	IPX7
Battery life	typical use with backlight at low, 43 weeks
Floats

Force® Kayak Propulsion System
Force trolling motor remote with lanyard
Black MOB tag
Power cable
Pull rope and cleat
Skeg
Performance propeller
Weedless propeller
Mounting hardware
Documentation
