ECHOMAP UHD2 7cv Chartplotters

Part Number 010-02593-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

WHY TALK TO A LOCAL WHEN YOU CAN FISH LIKE ONE?

They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5”and 7” chartplotters with clear, crisp sonar and mapping.

The bright 5” or 7” keyed display is made for convenience.

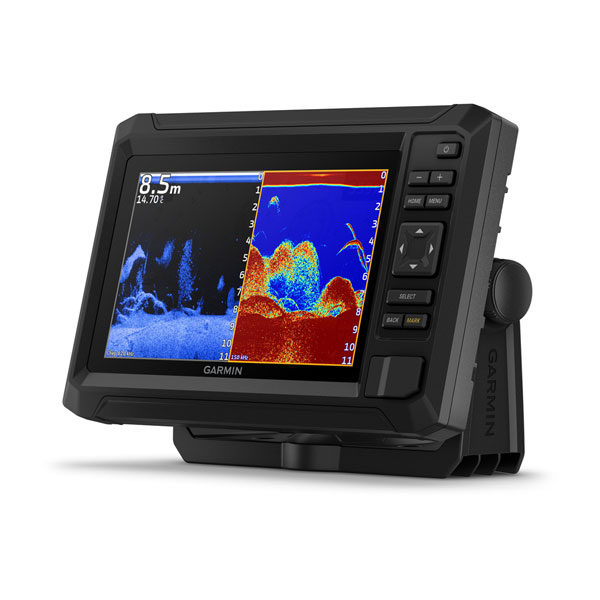

Get double the views¹ with Garmin CHIRP traditional and ClearVü scanning sonars.

What’s under the water looks even better with high-contrast vivid color palettes.

Wi-Fi connectivity² between compatible chartplotters makes it easy to share info.

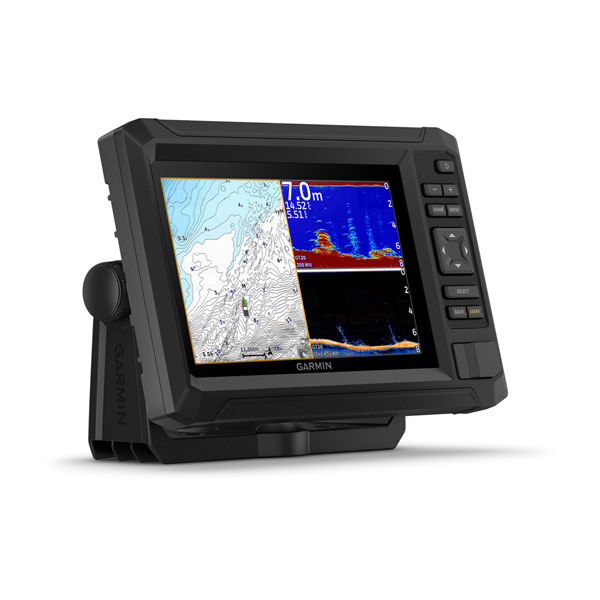

Enjoy No. 1 in mapping³ with our LakeVü g3 and BlueChart maps with Navionics data.

Know the waters, catch more fish.

SONAR SUPPORT

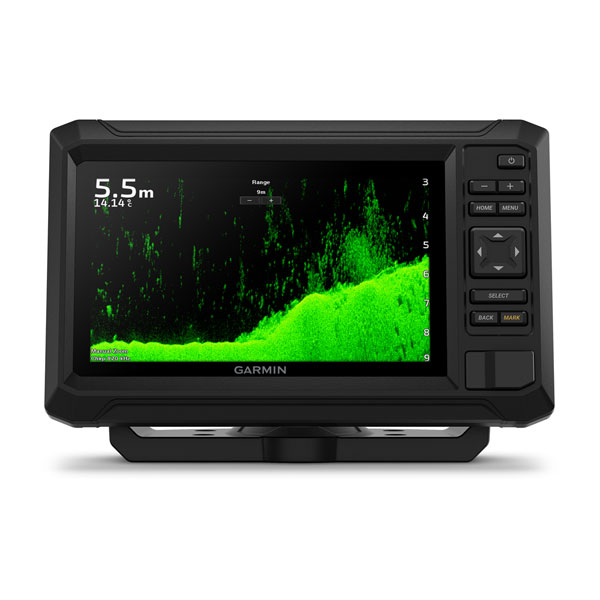

With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.

VIVID COLOR PALETTES

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

BUNDLE YOUR TRANSDUCER

Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.

PRELOADED CHARTS

Know the waters you're in as if you grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping which includes a 1-year subscription for downloadable daily updates and more.

WIRELESS NETWORKING

If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints and routes — with them.

ACTIVECAPTAIN APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, software updates, Garmin Quickdraw Community data and more².

Manage your marine experience using the free ActiveCaptain app

Learn More

Add a Portable Ice Fishing Kit

Learn More

¹Transducer required

²Requires the ActiveCaptain app on your compatible smartphone paired to the ECHOMAP UHD2 5” and 7” chartplotters

³Based on 2020 reported sales

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Purchase New Charts

General
Dimension	9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm)
Weight	1.5 lbs (0.7 kg)
Water rating	IPX7
Display Type	WVGA, TN
Display Size	6.1" x 3.4" (15.5 x 8.7 cm)
Display Resolution	800 x 480 pixels
Mounting Options	Bail or flush
Input	Keyed
Maps & Memory
Accepts Data Cards	1 microSD™ card; 32 GB maximum size
Waypoints	5,000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100
Sensors
GPS
Galileo
Has built-in receiver
Receiver	5 Hz
Supports WAAS
Built-in Maps
Built-in Auto Guidance+	yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal	yes (see Additional)
Garmin Navionics+ (Coastal)	yes (see Additional)
Garmin Navionics+ (Inland)	yes (see Additional)
Tide tables	yes (see Additional)
Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours
Chartplotter features
ActiveCaptain® compatible	yes
Electrical Features
Power Input	9 to 18 Vdc
Typical current draw at 12 Vdc	1.0 A
Maximum current draw at 12 Vdc	1.5 A
Maximum power usage at 10 Vdc	18W
Sonar Features
Displays sonar
Power output	500 W
Traditional sonar (dual frequency/beam)	Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz

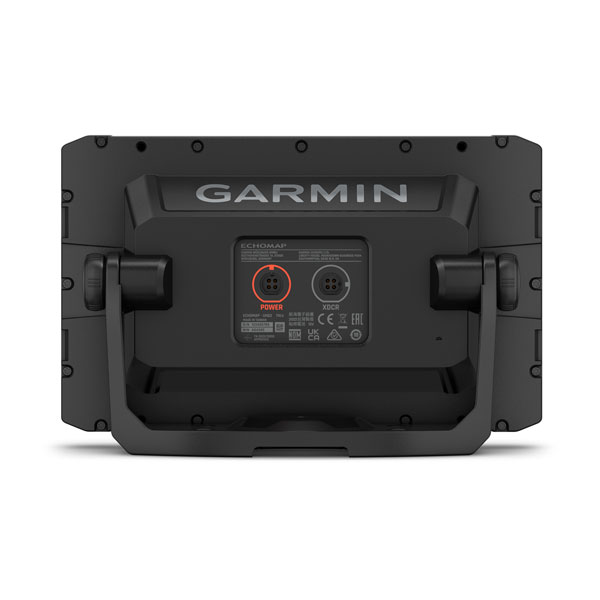

Connections
4-pin transducer ports	1
Garmin Wi-Fi network (local connection)
Additional
Additional	Garmin Navionics+ (inland and coastal): 75cv Canada, 75cv Australia/New Zealand Garmin Navionics+ (coastal): 74cv U.S., 75cv U.K./Ireland Garmin Navionics+ (inland): 73cv U.S. lakes Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv

With Transducer

ECHOMAP UHD2 (device varies depending on selection)
GT20-TM transducer
Power/data cable
Tilt mount
Flush mount
Hardware
Documentation

Without Transducer

ECHOMAP UHD2 (device will vary depending on selection)
Power/data cable
Tilt mount
Flush mount
Hardware
Documentation
