Zone Marine Amplifier

Part Number 010-02569-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

IT’S THE DIFFERENCE BETWEEN HEARING THE MUSIC AND FEELING IT

These efficient, easy-to-install amplifiers work with your compatible Fusion stereo system¹ and let you choose from monoblock, multichannel and zone amplifier options.

Keep the music going for longer without draining your battery as quickly.

No more manual adjustments to your audio settings. The Easy Tune feature does it for you².

A glance at the LED indicators lets you identify if the amplifiers have a short or if they’re overheating.

These amps have less distortion and noise, so you enjoy quality audio.

Mounting brackets are included for simple installation.

Don’t worry about potential overheating damage with our ignition protection design.

High-quality sound made easy.

POWER AND EFFICIENCY

The Apollo amplifiers are designed to produce impressive power with less drain on your battery. The monoblock produces 650-watt RMS and the 4/6/8 channel amplifiers produce 150-watt RMS per channel.

EASY TUNE FEATURE

These amplifiers use the Easy Tune feature², which automatically regulates audio settings. So, you can get the best quality sound without making manual adjustments.

LESS DISTORTION

Some amplifiers distort audio when they add power. Ours are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.

Superior Design

LED INDICATORS

Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.

MOUNTING BRACKETS

Easily install the amplifiers on board with the included mounting brackets.

IGNITION PROTECTED

The ignition protected design helps prevent potential damage from overheating.

CONFORMAL-COATED PCBS

The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.

2 OHM STABLE

You can connect up to two speakers per channel, increasing setup options.

FUSION TRUE-MARINE™ DESIGN

The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.

Perfect for your audio setup.

2000-WATT MONOBLOCK AMPLIFIER

Add extra power to your system with this 2000-watt (650-watt RMS) monoblock amplifier that’s specifically designed to power a subwoofer.

1200-WATT 4 CHANNEL AMPLIFIER

This 4 channel amplifier with 150-watt RMS per channel can power up to four pairs of speakers or two pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power.

1800-WATT 6 CHANNEL AMPLIFIER

This 6 channel amplifier with 150-watt RMS per channel can power up to six pairs of speakers or four pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power.

2400-WATT 8 CHANNEL AMPLIFIER

This 8 channel amplifier with 150-watt RMS per channel can power up to eight pairs of speakers or four pairs of speakers and two subwoofers. It includes high-power mode adapters for simple bridging to increase power.

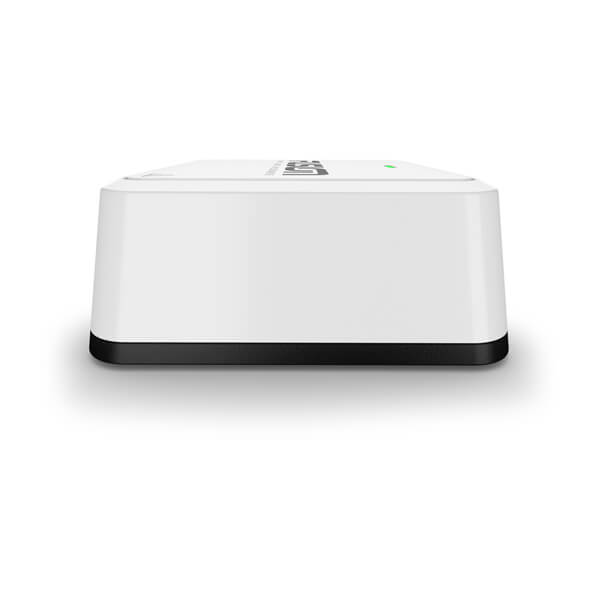

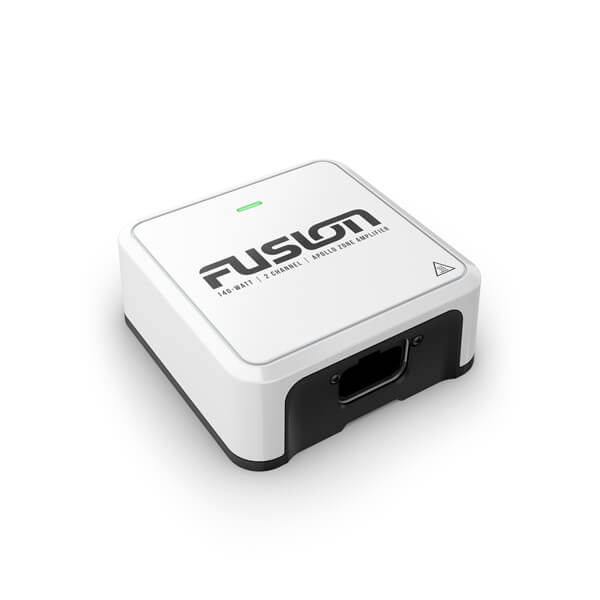

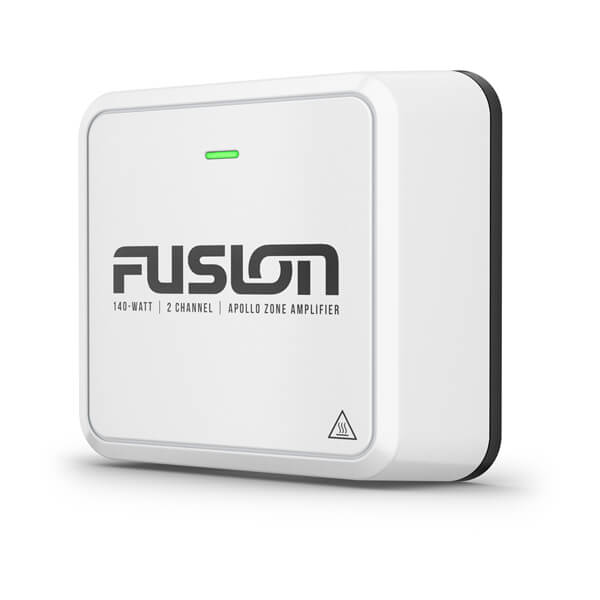

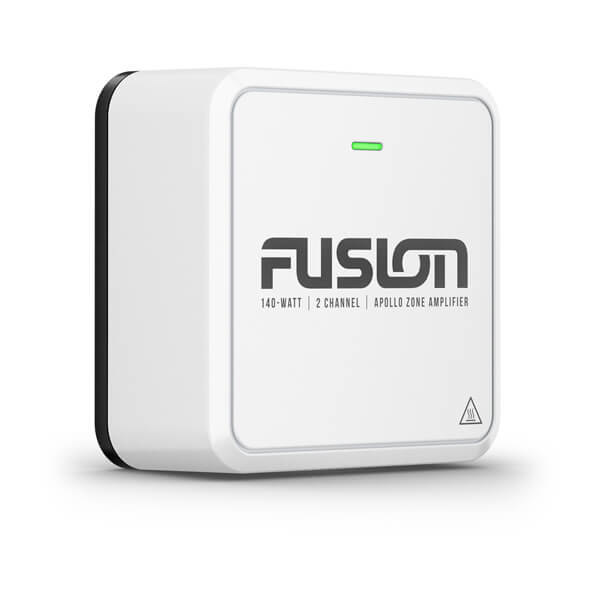

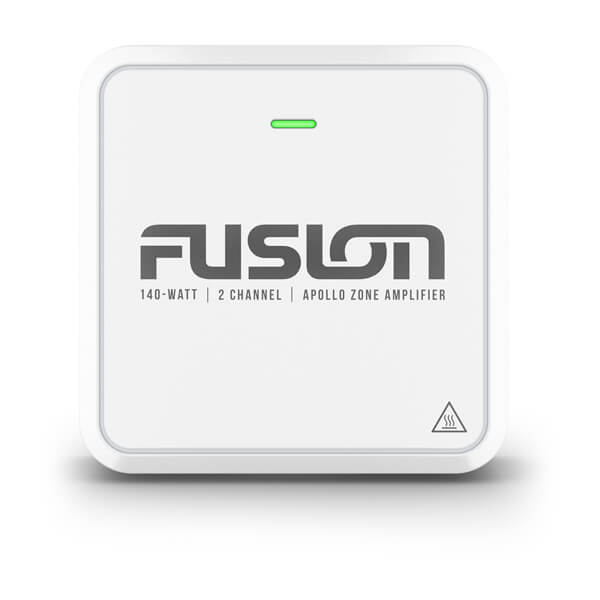

140-WATT ZONE AMPLIFIER

The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. It’s compatible with 12- and 24-volt electrical systems.

Superior sound quality with Fusion DSP and Apollo™ Series.

Learn More

Find the right setup with our online system builder.

Learn More

Fusion RA210 – compact marine stereo

Learn More

Enjoy entertainment control with the Fusion-Link™ App

Learn More

¹Amplifiers are designed exclusively for use with Fusion DSP-enabled stereos (Apollo RA770, Apollo RA670, Apollo WB670 and RA210) and Fusion speakers

²Requires setup using the Fusion-Link app on a compatible smartphone

General
Warranty	3 years
Channels	Monoblock/4/6/8/Zone
Physical dimensions (Height)	Monoblock/4/6/8-Channel: 7.06" (180 mm) Zone: 3.94" (100 mm)
Physical dimensions (Width)	Monoblock/4-Channel: 9.25" (235 mm) 6-Channel: 11.69" (297 mm) 8-Channel: 14.13" (359 mm) Zone: 3.94" (100 mm)
Physical dimensions (Depth)	Monoblock/4/6/8-Channel: 1.75" (45 mm) Zone: 1.57" (40 mm)
Weight	Monoblock/4-Channel: 4.85 lbs (2.2 kg) 6-Channel: 5.95 lbs (2.7 kg) 8-Channel: 6.94 lbs (3.15 kg) Zone: 1.01 lbs (460 g)
Water and dust rating	Monoblock/4/6/8-Channel: IPX2 Zone: IPX7
Operating temperature range	32° to 122° F (0° to 50° C)
Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	Monoblock: 650 W x 1 4-Channel: 150 W x 4/580 x 2 (Bridged) 6-Channel: 150 W x 6/580 x 3 (Bridged) 8-Channel: 150 W x 8/580 x 4 (Bridged) Zone: 20 W x 2
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)	Monoblock: 1100 W x 1 4-Channel: 290 W x 4 6-Channel: 290 W x 6 8-Channel: 290 W x 8 Zone: 30 W x 2
Frequency response (+0, -1dB)	20 Hz-20 kHz
Input sensitivity @ RCA inputs	Monoblock: 2.15 V RMS 4/6/8-Channel: 1.3 V RMS Zone: 0.45 V RMS
Input voltage range @ RCA inputs	Monoblock: 2.15 V RMS 4/6/8-Channel: 1.3 V RMS Zone: 0.45 V RMS
Input impedance	Monoblock/4/6/8-Channel: 22 kΩ Zone: 9 kΩ
Current consumption (Standby)	Monoblock/4/6/8-Channel: < 5 mA @ 14.4 V input Zone: < 1 mA @ 14.4 V input
Current consumption (Idle)	Monoblock: < 0.89 A @ 14.4 V input 4-Channel: < 1.15 A @ 14.4 V input 6-Channel: < 1.32 A @ 14.4 V input 8-Channel: < 1.60 A @ 14.4 V input Zone: < 0.04 A @ 14.4 V input
Current consumption (Max)	Monoblock: 87 A 4-Channel: 53 A 6-Channel: 78 A 8-Channel: 104 A Zone: 10 A
Fuse rating	Monoblock/6/8-Channel: 125 A electronic fuse (no replacement neccessary) 4-Channel: 85 A electronic fuse (no replacement neccessary) Zone: 16 A electronic fuse (no replacement necessary)
Min. copper power/Ground wire gauge	Bussmann™ BK/AMI-030 30 A fast-acting
Ignition safety protected (SAE J1171)	yes
Protection circuits	Reverse voltage Input under/over voltage Over temperature Output short circuit

General
Physical dimensions without bracket (LxWxH)	Monoblock/4 Channel: 9.25" x 7.06" x 1.75" (235 x 180 x 45 mm) 6 Channel: 11.69" x 7.06" x 1.75" (297 x 180 x 45 mm) 8 Channel: 14.13" x 7.06" x 1.75" (359 x 180 x 45 mm) Zone: 3.94" x 3.94" x 1.57" (100 x 100 x 40 mm)
Physical dimensions with bracket (LxWxH)	Monoblock/4 Channel: 9.25" x 7.06" x 2.13" (235 x 180 x 50 mm) 6 Channel: 11.69" x 7.06" x 2.13" (297 x 180 x 50 mm) 8 Channel: 14.13" x 7.06" x 2.13" (359 x 180 x 50 mm) Zone: 3.94" x 4.53" x 1.89" (100 x 115 x 48 mm)
Weight	Monoblock/4 Channel: 4.85 lb (2.2 kg) 6 Channel: 5.95 lb (2.7 kg) 8 Channel: 6.94 lb (3.15 kg) Zone: 1.01 lb (460 g)
Water Rating	Monoblock/4/6/8 Channel: IPX2 Zone: IPX7
Amplifier class	Class-D
CEA-2006 power rating	Monoblock: 650 watt RMS x 1 @ 14.4 V input - 4 ohm < 1% THD 4 Channel: 150 watt RMS x 4 @ 14.4 V input - 4 ohm < 1% THD 6 Channel: 150 watt RMS x 6 @ 14.4 V input - 4 ohm < 1% THD 8 Channel: 150 watt RMS x 8 @ 14.4 V input - 4 ohm < 1% THD Zone: 20 watt RMS x 2 @ 14.4 V input - 4 ohm < 1% THD
Total rated power output - 2 ohm (watts)	Monoblock: 1100 watt RMS x 1 @ 14.4 V input - 2 ohm < 1% THD 4 Channel: 290 watt RMS x 4 @ 14.4 V input - 2 ohm < 1% THD 6 Channel: 290 watt RMS x 6 @ 14.4 V input - 2 ohm < 1% THD 8 Channel: 290 watt RMS x 8 @ 14.4 V input - 2 ohm < 1% THD Zone: 30 watt RMS x 2 @ 14.4 V input - 2 ohm < 1% THD
Total rated power output - 4 ohm Bridged (watts)	4 Channel: 580 watt RMS x 2 @ 14.4 V input - 4 ohm Bridged < 1% THD 6 Channel: 580 watt RMS x 3 @ 14.4 V input - 4 ohm Bridged < 1% THD 8 Channel: 580 watt RMS x 4 @ 14.4 V input - 4 ohm Bridged < 1% THD
Peak power (watts)	Monoblock: 2000 watts 4 Channel: 1200 watts 6 Channel: 1800 watts 8 Channel: 2400 watts Zone: 140 watts
Input sensitivity	Monoblock: 2.15 V RMS 4/6/8 Channel: 1.6 V RMS Zone: 0.45 V RMS
Input impedance	Monoblock/4/6/8 Channel: 22k ohm Zone: 9k Ohm
Operating voltage	Monoblock/4/6/8 Channel: 10.8 V - 16 V DC Zone Amplifier: 10.8 V - 32 V DC
Current draw, in standby/off using amplifier on wire	Monoblock/4/6/8 Channel: < 5 mA @ 14.4 V input Zone: < 1 mA @ 14.4 V input
Current draw, on, no audio	Monoblock: < 1.15 A @ 14.4 V input 4 Channel: < 1.15 A @ 14.4 V input 6 Channel: < 1.32 A @ 14.4 V input 8 Channel: < 1.60 A @ 14.4 V input Zone: < 0.04 A @ 14.4 V input
Fuse rating	Monoblock/6/8 Channel: 125 A electronic fuse (no replacement neccessary) 4 Channel: 85 A electronic fuse (no replacement neccessary) Zone: 16 A electronic fuse (no replacement necessary) Power-cable fuse or circuit breaker rating (not included): 40 A
Power-cable fuse model and rating	Bussmann™ BK/AMI-030 30 A fast-acting
Ignition Safety Protected (SAE J1171)	yes
Protection circuits	Reverse voltage Input under/over voltage Over temperature Output short circuit
Operating temperature range	32° to 122° F (0° to 50° C)
Warranty	3 years

Apollo Monoblock Amplifier

One Apollo monoblock amplifier
One mounting bracket
One power connector
One speaker connector
Four 8-guage, flat head self-tapping screws
Four 8-guage, pan head self-tapping screws (for mounting bracket)
Four screw covers
Mounting template
Installation instructions
Important safety and product information (ISPI)

Apollo 4 Channel Amplifier

One Apollo 4 channel amplifier
One mounting bracket
One power connector
Two speaker connectors with high power mode adapters
Four 8-guage, flat head self-tapping screws
Four 8-guage, pan head self-tapping screws (for mounting bracket)
Four screw covers
Mounting template
Installation instructions
ISPI

Apollo 6 Channel Amplifier

One Apollo 6 channel amplifier
One mounting bracket
One power connector
Three speaker connectors with high power mode adapters
Four 8-guage, flat head self-tapping screws
Four 8-guage, pan head self-tapping screws (for mounting bracket)
Four screw covers
Mounting template
Installation instructions
ISPI

Apollo 8 Channel Amplifier

One Apollo 8 channel amplifier
One mounting bracket
One power connector
Four speaker connectors with high power mode adapters
Four 8-guage, flat head self-tapping screws
Four 8-guage, pan head self-tapping screws (for mounting bracket)
Four screw covers
Mounting template
Installation instructions
ISPI

Apollo Zone Amplifier

One Apollo zone amplifier
One mounting bracket
Three 6-guage, self-tapping screws
Wiring loom
Installation instructions
ISPI
