echoMAP™ 50s

Part Number 010-01096-00

ONLINE STORE

Images-1 Images-2 Images-3 Images-4 Images-5

An Amazing Combo with a 5" Display

  • 5" VGA display
  • HD-ID™ sonar
  • 500W (77/200 kHz) transducer
  • 10Hz GPS/GLONASS receiver
  • Wireless connectivity

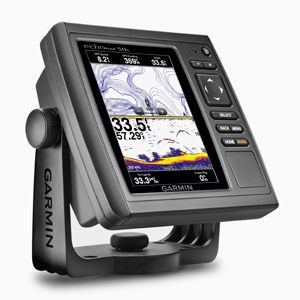

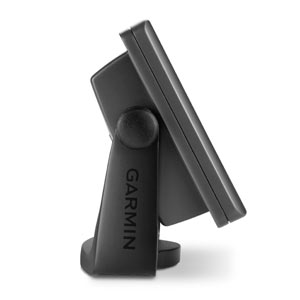

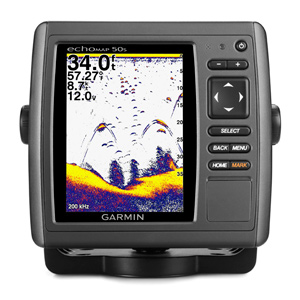

echoMAP™ 50s

echoMAP 50s is an amazing chartplotter and fishfinder combination. Its crystal-clear 5" display provides clear target separation, allows visibility both day and night, and has a user interface that anyone can navigate. It comes with a worldwide basemap or Garmin U.S. lakes or offshore cartography.

Super-fast 10 Hz GPS/GLONASS

With the integration of a 10Hz GPS/GLONASS receiver, the 50s refreshes position and heading up to 10 times per second. It displays constant and fluid on-screen location and proves to be incredibly accurate when marking waypoints and navigating.

Advanced Echo HD-ID Sonar

In addition to the integrated receiver, echoMAP 50s also allows for sonar recording. This feature coordinates the timing of the sonar return in relation to the boat’s position — so every one of the available 5,000 waypoints will be accurate and precise. It's an absolute must when locating and pinpointing the next hot fishing spot.

Transducer and Wireless Connectivity

Included with echoMAP 50s is a dual-beam transducer that transmits a 77/200 kHz signal. It also has wireless connectivity capability, giving you the opportunity to connect and access marine-specific apps via smartphone or tablet.

Available with preloaded LakeVü HD maps — more than 17,000 lakes plus more than 570 HD lakes with 1’ contours shoreline to shoreline — or BlueChart g2 coastal maps.



New Charts Guarantee LakeVü HD Ultra

Physical & Performance

Physical dimensions 5.9" x 6.1" x 2.4" (15.0 x 15.5 x 6.1 cm)
Display size, WxH 3.0" x 4.0"; 5.0" diagonal
(7.6 x 10.2 cm; 12.7 cm diagonal)
Display resolution, WxH 480 x 640 pixels
Display type VGA display
Weight 1.6 lbs (0.7 kg)
Water rating IPX7
Receiver

10 Hz high-sensitivity

Antenna Internal with external connection
Mounting options Bail, flat or flush
Power consumption
  • Max power usage at 10 Vdc: 27 W
  • Typical current draw at 12 Vdc: 450 mA
  • Max current draw at 12 Vdc: 2.7 A
  • Maps & Memory

    Preloaded maps (depending on version)
    Accepts data cards 2 microSD™ cards
    Waypoints 5,000
    Routes 100
    Track log 50,000 points; 50 saved tracks

    Features & Benefits

    Garmin Radar compatible
    Garmin Sonar compatible
    NMEA 2000® compatible
    NMEA 0183 compatible
    Garmin SmartMode compatible (customizable monitor presets)
    Supports AIS (tracks target ships position)
    Supports DSC (displays position data from DSC-capable VHF radio)
    Tide tables
    Garmin Meteor Audio System compatible
    Supports Fusion-Link compatible marine radios
    GSD™ Black Box sonar support
    GCV™ Black Box sonar support
    SiriusXM™ Weather & Radio compatible
    BlueChart® Mobile (planning) compatible
    Garmin Helm compatible
    GRID™ (Garmin Remote Input Device) compatible
    Wireless remote compatible
    Wireless mouse compatible

    Sonar Features & Specifications

    Dual-frequency (50/200 kHz) sonar capable
    Dual-beam (77/200 kHz) sonar capable
    Frequencies supported 50/77/200 kHz
    Transmit power 500 W (RMS) / 4,000 W (peak to peak)
    CHIRP sonar technology
    ClearVü™
    SideVü™
    Voltage range 10-32 Vdc input
    Maximum depth 1,900 ft fresh water
    700 ft salt water
    (depth capacity is dependent on water bottom type and other water conditions)
    Bottom lock (shows return from the bottom up)
    Water temperature log and graph
    Sonar recording
    Sonar history rewind

    Connections

    NMEA 0183 input ports 2
    NMEA 0183 output ports 2
    Video input ports
    Video output ports
    Wireless connectivity
    Garmin Marine Network™ ports
    • echoMAP 50s
    • Power/data cable or power/data/sonar cable
    • Tilt/swivel mount
    • Flush mount kit
    • Protective cover
    • Bezel
    • Documentation

    echoMAP 50s is available with and without dual-frequency transducer.
