echo™ 151

Part Number 010-01258-00

ONLINE STORE

Images-1 Images-2 Images-3 Images-4

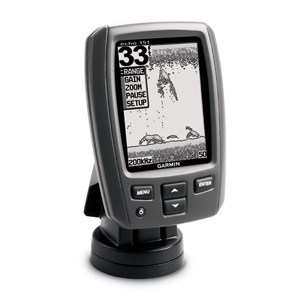

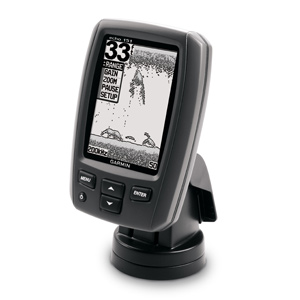

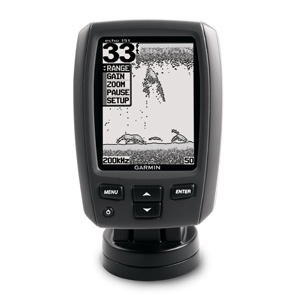

A Powerfully Simple Fishfinder

  • Exclusive advanced HD-ID™ dual-beam sonar with transducer
  • 4-inch diagonal, 8-level gray scale display
  • Transmit power (RMS)/(Peak-To-Peak): 200 W/1,600 W
  • Maximum depth: 1,600 feet¹
  • Frequency: 77/200 kHz included (supports 50/200 kHz)

The powerful, simple-to-use echo 151 delivers the technology you need to catch more fish. The built-in Garmin advanced HD-ID dual-beam sonar with a 77/200 kHz transducer (supports a 50/200 kHz transducer, sold separately) gives you excellent target separation and bottom tracking on the crisp 4-inch, 256x160 pixel gray-scale display. Its 1,600 W peak-to-peak power reaches down to 1,600 feet maximum¹, and the wide viewing cone angles (60/120 degrees) give you a big picture well beyond the sides of your boat — even in shallow water.

Mount and Go

It comes ready-to-go with a quick-release tilt/swivel mount and transom/trolling transducer mount kit. So you can get right to fishing.

¹Maximum depth dependent on transducer, water, salinity, bottom type and other water conditions.

Physical & Performance

Physical dimensions 4.1" x 5.8" x 2.8" (10.4 x 14.7 x 7.1 cm)
Display size, WxH 2.38" x 3.21" (6.04 x 8.15 cm); 4” diag, (10.16 cm)
Display resolution, WxH 160 x 256 pixels
Display type 8-level grayscale FSTN
Weight 9.5 oz (270 g)
Water rating IPX7

Features & Benefits

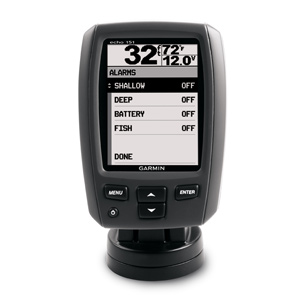

Audible alarms
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Split-screen zoom
Ultrascroll® (displays fish targets at higher boat speeds)
Fish Symbol ID (helps identify fish targets)
AutoGain Technology (minimizes clutter, maximizes targets)
Whiteline (indicates hard or soft bottom)
Adjustable depth line (measures depth of underwater objects)
A-scope (real time display of fish passing through transducer beam)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Water temperature sensor included
Water speed capable (displays speed on water)

Other Specs

Frequencies supported 50/77/200 kHz, ClearVü
Transmit power 200 W (RMS)/1,600 W (peak to peak)
Voltage range 10-20 Vdc input
Maximum depth 1600 ft @ 77 kHz, freshwater
Cone angle 60º or 120º (dual beam)
Additional HD-ID Tracking Technology
  • echo 101
  • Dual-beam transducer with transom mount and trolling motor mount
  • Tilt/swivel quick-release mount
  • Power cable
  • Documentation
