Discontinued

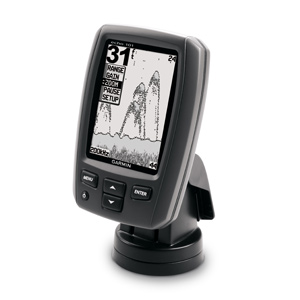

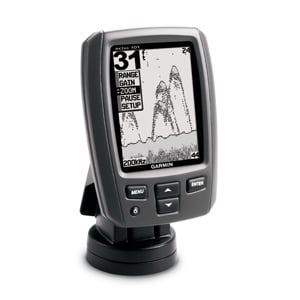

echo™ 101

Part Number 010-01257-00

ONLINE STORE

Images-1 Images-2 Images-3 Images-4

Power in a Compact Package

  • 4-inch gray scale display
  • Garmin HD-ID™ sonar technology
  • Transmit power (RMS)/(Peak-To-Peak): 200 W/1,600 W
  • Maximum depth: 1,500 feet¹
  • Beamwidth to 60 degrees

See More for Your Money

The powerful, simple-to-use echo 101 has the compact, space-saving design and advanced sonar features you’d expect to find only on much higher-priced units. The built-in Garmin advanced HD-ID sonar gives you excellent target separation and fish arch definition on the crisp 4-inch, 256x160 pixel grayscale display. Single-beam (200 kHz) transducer with 1,600 W peak-to-peak power output dives down to a maximum depth of 1,500 feet¹.

Save Valuable Space

Its compact, space-saving design makes echo 101 the perfect companion for small craft. Includes a quick-release tilt/swivel mount, transducer and versatile transom and trolling motor mount kit to make installation a snap.

¹Maximum depth dependent on transducer, water, salinity, bottom type and other water conditions.

Physical & Performance

Physical dimensions 4.1" x 5.8" x 2.8" (10.4 x 14.7 x 7.1 cm)
Display size, WxH 2.38" x 3.21" (6.04 x 8.15 cm); 4” diag, (10.16 cm)
Display resolution, WxH 160 x 256 pixels
Display type 8-level grayscale FSTN
Weight 9.5 oz (270 g)
Water rating IPX7

Features & Benefits

Audible alarms
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Split-screen zoom
Ultrascroll® (displays fish targets at higher boat speeds)
Fish Symbol ID (helps identify fish targets)
AutoGain Technology (minimizes clutter, maximizes targets)
Whiteline (indicates hard or soft bottom)
Adjustable depth line (measures depth of underwater objects)
A-scope (real time display of fish passing through transducer beam)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Water temperature sensor included
Water speed capable (displays speed on water)

Other Specs

Frequencies supported 200 kHz
Transmit power 200 W (RMS)/1,600 W (peak to peak)
Voltage range 10-20 Vdc input
Maximum depth 1500 ft @ 200 kHz, freshwater
Cone angle 60º (single beam)
Additional HD-ID Tracking Technology
  • echo 101
  • Dual-beam transducer with transom mount and trolling motor mount
  • Tilt/swivel quick-release mount
  • Power cable
  • Documentation
