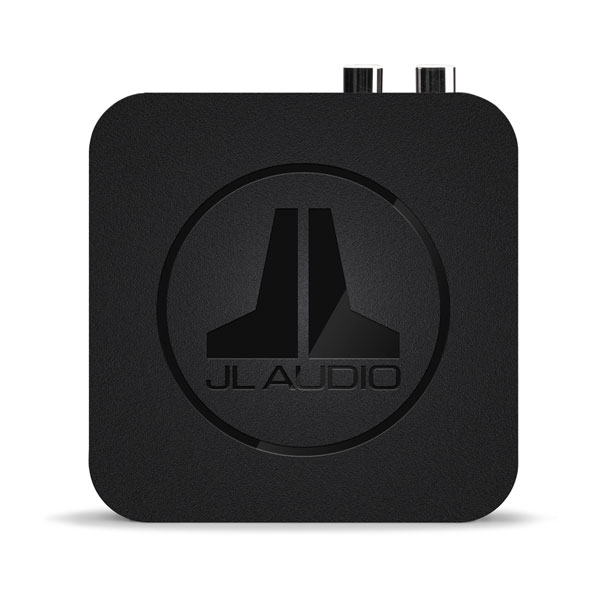

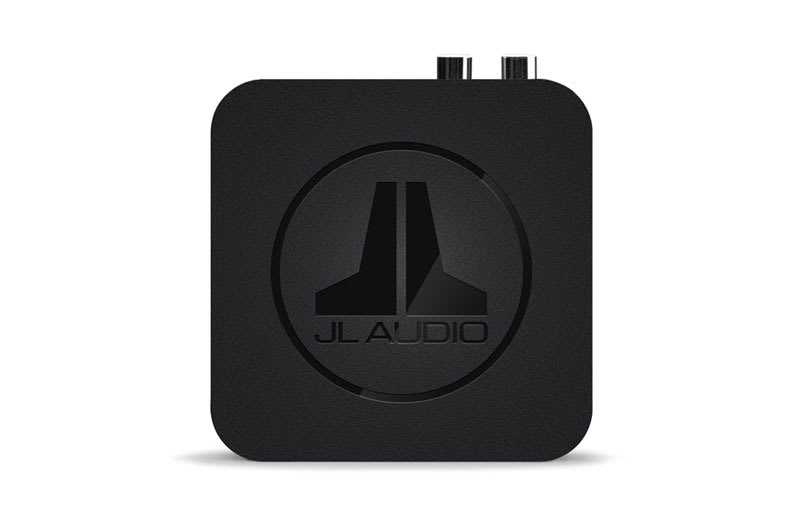

JL Audio JLink Signal Processor

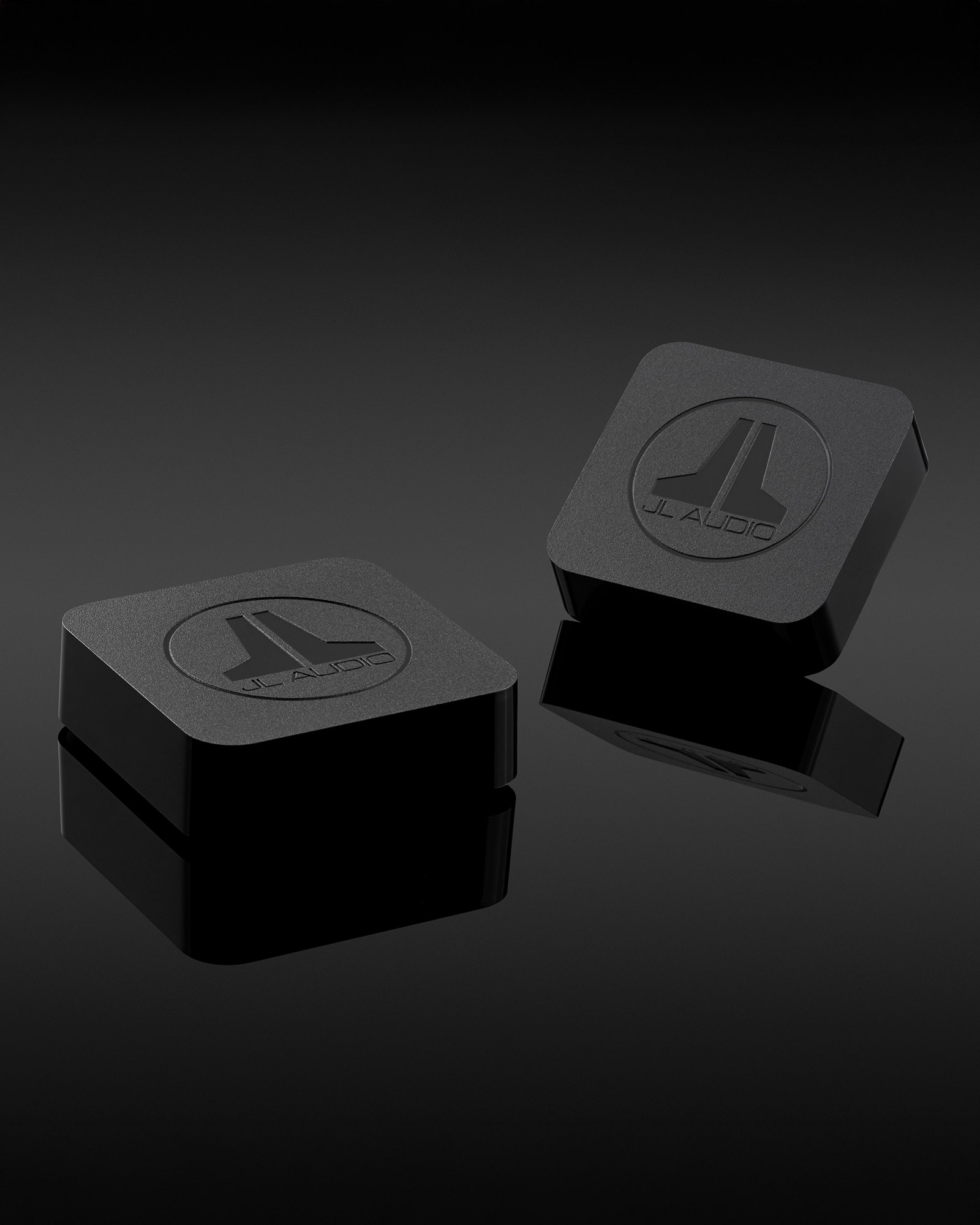

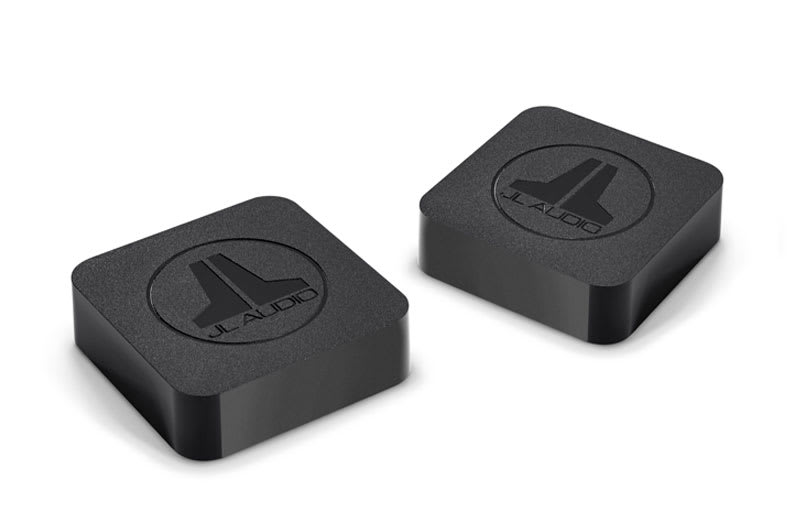

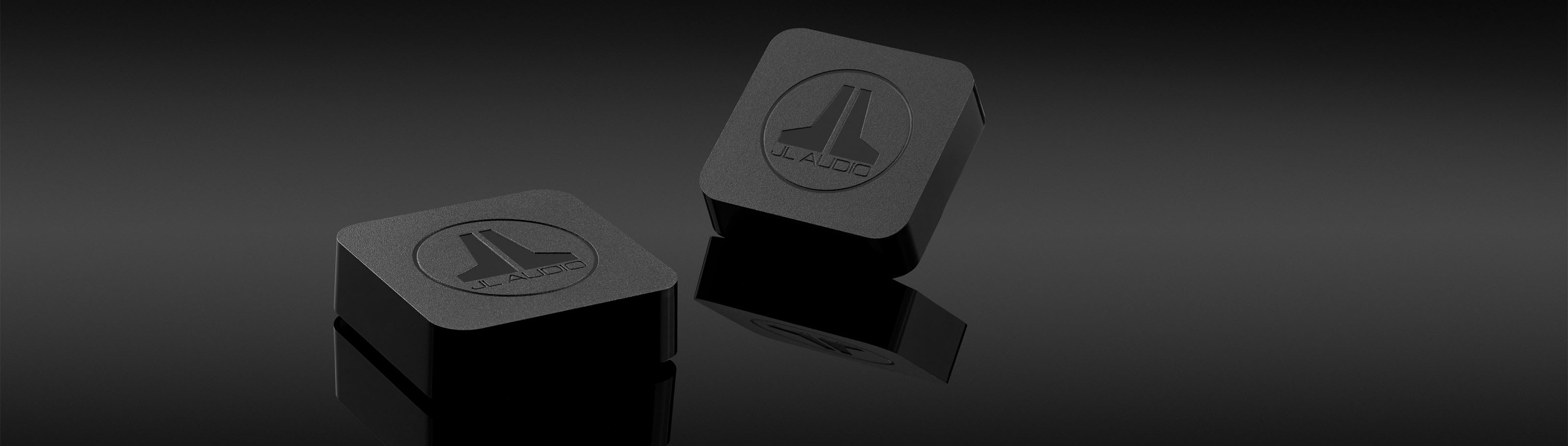

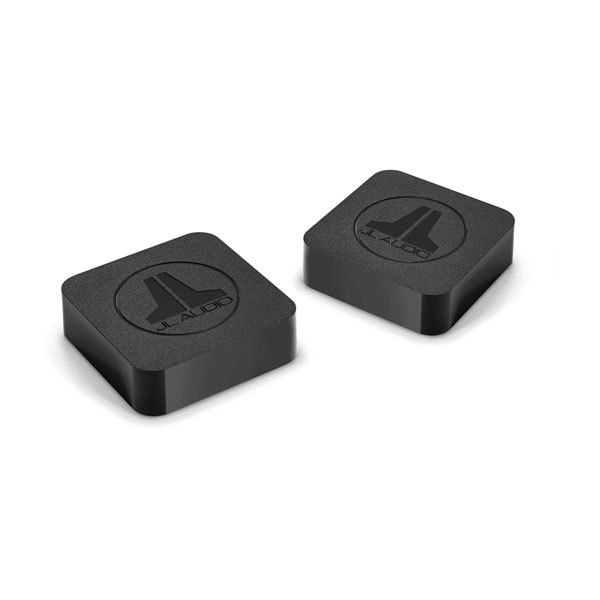

Wireless, High-fidelity Audio Transmitter and Receiver Kit (JLink TRX)

Part Number 010-03182-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

WIRELESS AUDIO WITHOUT COMPROMISE

Using state-of-the-art wireless technology, the JLink TRX system delivers pure high-fidelity sound throughout your home — invisibly and effortlessly.

INDOOR RANGE OF UP TO 100’

BIT-PERFECT DIGITAL PCM STEREO WIRELESS TECHNOLOGY

OUTSTANDING FIDELITY IN SUBWOOFER OR FULL-RANGE APPLICATIONS

RCA INPUT/OUTPUT CONNECTORS

RECEIVER INCLUDES JLINK DIRECT CONNECTION PORT

ASSIGN SIGNAL TO ONE OF THREE RF CHANNELS

WHAT YOU'LL LOVE

CRISP WIRELESS AUDIO

By broadcasting at an ultrahigh frequency of 2.4 GHz, JLink TRX lets you connect any two line-level audio devices together, without the use of RCA signal cables to connect in between. Now you can wirelessly send crystal-clear stereo sound from a source unit to a receiver, preamp or powered loudspeakers.

OPTIONAL TRANSMITTER

If you wish to expand your JLink setup, up to four JLink RX receivers can be connected to a single JLink transmitter, delivering audio signals to multiple points in your home. Up to three JLink transmitters can operate in a home, each on its own wireless channel and each connected to up to four JLink RX receivers.

General
Channels	2
Physical dimensions (Height)	Transmitter/Receiver 1.12" (28 mm)
Physical dimensions (Width)	Transmitter/Receiver 3.5" (89 mm)
Physical dimensions (Depth)	Transmitter/Receiver 3.5" (89 mm)
Signal-to-Noise ratio	80 dB @ 1 kHz, 500 mV
THD+N	0.02% @ 1 kHz, 500 mV
Crosstalk	>75 dB @ 1 kHz, 500 mV
Frequency response (+0, -1dB)	16 Hz-22 kHz
Wireless range	100 ft/30 m (typical)
Wireless channels	3 available, selectable via switch
Latency	14 mS
Operating temperature range	32º to 104° F/0º to 40° C
AC power adapter	1 A, 5 V DC
Warranty	3 years
Transmitter Specifications
Input impedance	25 kΩ
Outputs	Bit-perfect PCM stereo digital via 2.4 GHz wireless
Receivers supported	Up to 4
Bit depth/Sample rate	16 Bit/48 kHz
Power requirements	200 mA, 5 V (via AC adapter)

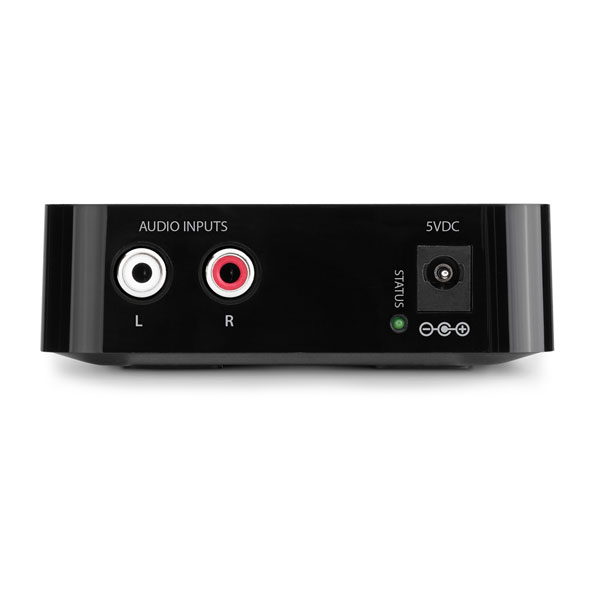

Inputs	Analog, left and right RCA-type
Receiver Specifications
Inputs	Bit-perfect PCM stereo digital via 2.4 GHz wireless
Outputs	Analog, left and right RCA-type analog via JLINK port to compatible product
Output Impedance	250 Ω
Full Scale Output Voltage	1.2 V
Power Requirements	100 mA, 5 V (via AC adaptor or JLINK port)

JLINK RX Receiver
AC power adaptor(s)
JLINK port connection cable (3 ft)
Hook & loop fastener tape

JLink TRX also includes:

JLINK TX transmitter
