JL Audio JD Car Full-range Amplifier

4-Channel Full-range Amplifier (400 W) (JD400/4)

Part Number 010-03184-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

AFFORDABLE EXCELLENCE IN A POWERFUL 4-CHANNEL AMPLIFIER

With this robust 4-channel amplifier from JL Audio, exclusive NexD^™ high-speed switching technology delivers loads of clean power, full-range fidelity and superefficient performance from a surprisingly compact package. Plus, a generous feature set adds even more to the value.

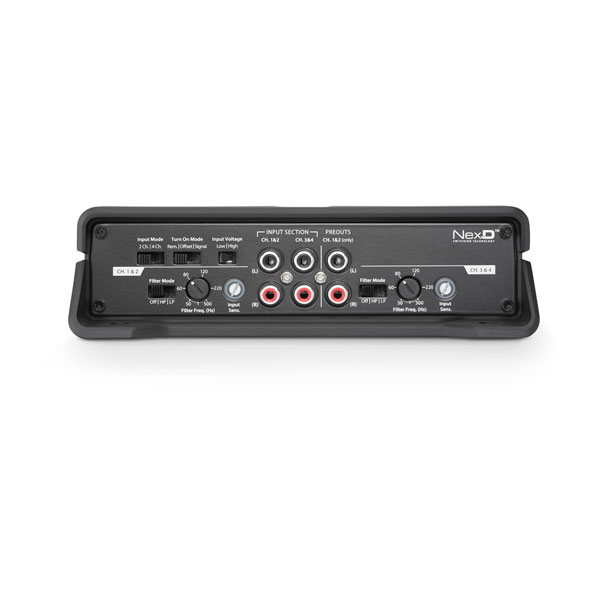

12-DECIBEL/OCTAVE FILTER WITH SELECTABLE HIGH, LOW OR DEFEAT (OFF) MODES

SELECTABLE INPUT VOLTAGE: LOW (200 mV TO 2-VOLT RMS) TO HIGH (800 mV to 8-VOLT RMS)

3 TURN-ON OPTIONS: +12-VOLT REMOTE WIRE, SIGNAL SENSING OR DC OFFSET

ONBOARD LED CLIPPING INDICATOR SIMPLIFIES LEVEL SETTING

SIGNAL ROUTING FLEXIBILITY WITH 2- OR 4-CHANNEL INPUT MODE

2-YEAR WARRANTY

WHAT YOU'LL LOVE

EFFICIENT CLASS-D DESIGN

Small size, minimal heat and lots of power — Class-D amplifier design offers significant advantages. And our NexD switching technology adds even more, using enhanced pulse width modulation techniques to boost the amplifier’s bandwidth while minimizing distortion and improving efficiency.

CLEAN, POWERFUL, RELIABLE

Churning out 400 watts of total power — 100 watts from each of its 4 channels into a 2-ohm load (14.4 volts, 1% THD) — this JD series amp brings stunning output to your speaker system. It’s also fully bridgeable, so it can be used as a 3- or 2-channel amp to drive even more power through each line.

PREMIUM-LEVEL SIGNAL PROCESSING

This JD series amplifier’s signal processing features include high- or low-pass 12 decibel/octave filters for each channel pair, with continuously variable frequency selection from 50–500 Hz.

LED CLIPPING INDICATOR RINGS

An LED clipping indicator ring that surrounds each input level potentiometer lets you quickly and accurately set your amplifier’s input sensitivity, without the need for additional test equipment.

BUILT STRONG AND SMART

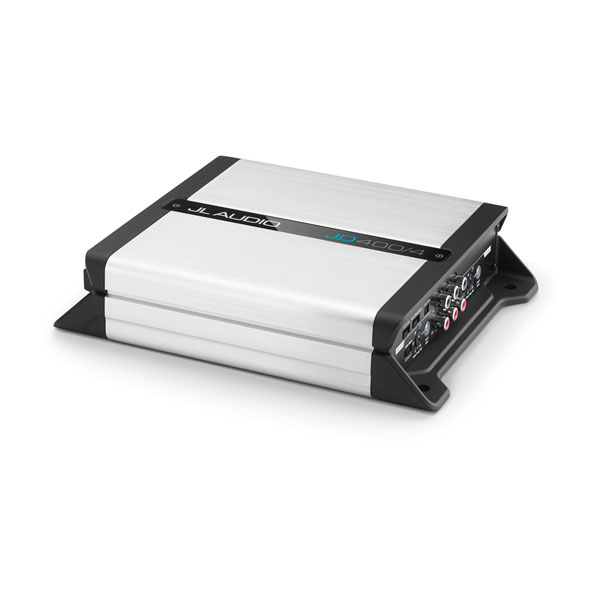

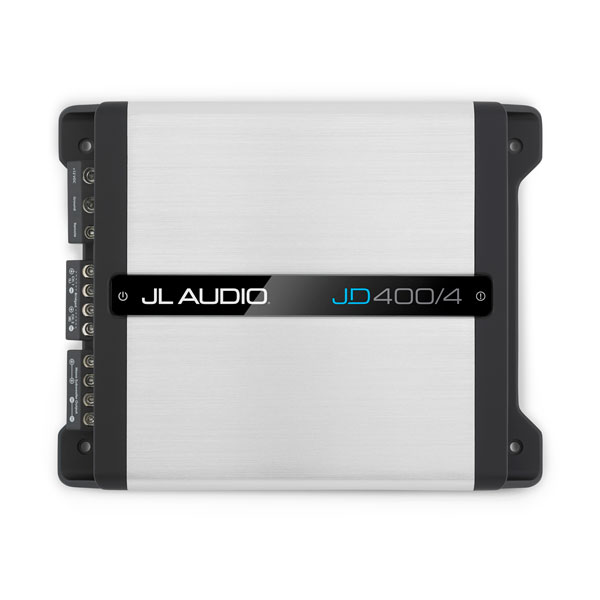

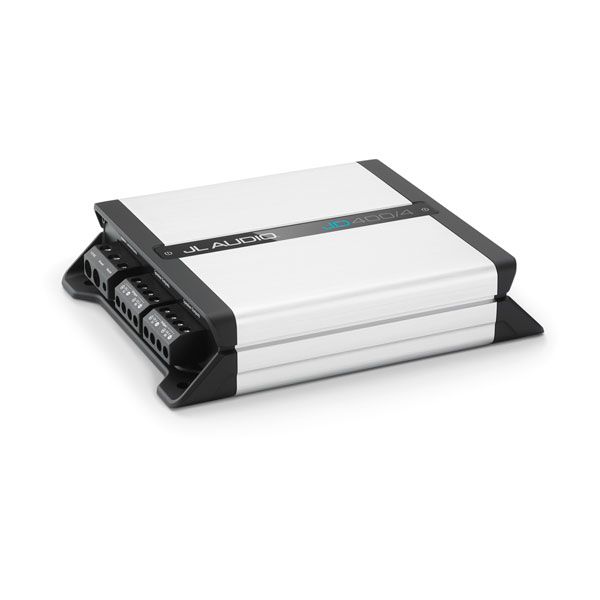

Featuring a sleek industrial design with molded end caps and an aluminum extruded chassis, the JD series’ power indicator and protection LED indicators shine from behind a simple black logo bar on the top surface of the amplifier.

AUDIO TECHNOLOGIES

DIFFERENTIAL-BALANCED INPUTS

Combating induced cable noise, this technology allows for the use of conventional RCA cables while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.

NEXD SWITCHING TECHNOLOGY

Using enhanced pulse width modulation techniques, NexD technology achieves exceptional audio fidelity and efficiency while delivering high-power output from very compact amplifier designs.

General
Channels	4
Physical dimensions (Height)	2.10" (53 mm)
Physical dimensions (Width)	9.50" (242 mm)
Physical dimensions (Depth)	7.50" (190 mm)
Warranty	2 years
Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	75 W x 4/200 W x 2 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)	100 W x 4
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)	60 W x 4/180 W x 2 (Bridged)
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)	90 W x 4
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	>104 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	>84 dB
Damping factor @ 4 Ω	>150/50 Hz
Damping factor @ 2 Ω	>75/50 Hz
THD+N @ Rated Power	<1% @ 2 Ω per Channel
Frequency response (+0, -1dB)	12 Hz-22 kHz
Input voltage range @ RCA inputs	Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Signal Processing
Filter mode(s): Channels 1 & 2	Off, Low-pass or High-pass
Filter Slope(s): Channels 1 & 2	12 dB/octave
Filter frequency range: Channels 1 & 2	50 Hz-500 Hz
Channel input mode switch	yes (2/4 Channels)
Pass-through preamp output	Buffered

JD amplifier
2.5 mm Allen-wrench
3 mm Allen-wrench
