JL Audio H.O. Wedge W7AE Enclosed Car Subwoofer

Single 12" W7AE Subwoofer

Part Number 010-03241-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

EXPERIENCE THE DEEP, RICH POWER OF HIGH-OUTPUT BASS

Combining the high-power handling of the JL Audio 12-inch W7AE subwoofer with the innovative and highly efficient H.O. Wedge enclosure with a chamber-coupled port design, this system rewards your ears with the ultimate sub-bass audio experience on wheels.

ENJOY EFFICIENT, POWERFUL BASS PERFORMANCE WITH TIGHT, CLEAR SONICS

CHAMBER-COUPLED PORT DESIGN

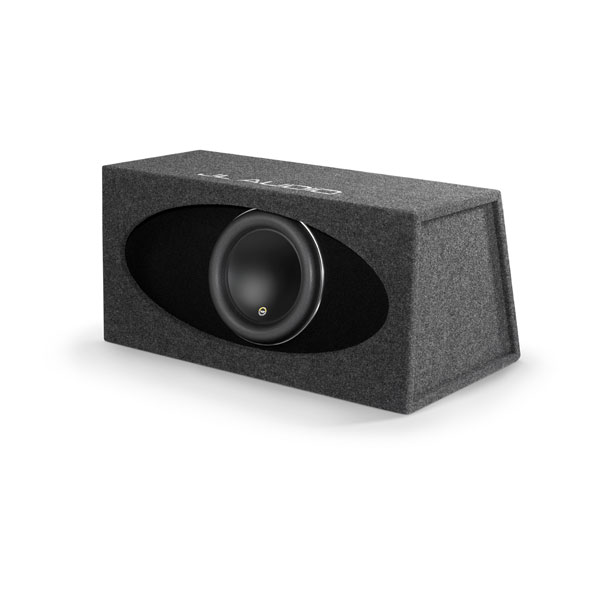

ANGLED-BACK, H.O. WEDGE ENCLOSURE DESIGN SAVES CARGO SPACE

TOP-TIER JL AUDIO W7AE SUBWOOFER

PAIRS BEST WITH AMPLIFIER POWER IN THE 400–1000 WATT RANGE

2-YEAR WARRANTY

WHAT YOU'LL LOVE

ENGINEERED FOR SUPERIOR SOUND QUALITY

The H.O. Wedge systems with W7AE series subwoofers are built to perform at serious output levels. They deliver bass that will impress you not only with its sheer level — but also with its smoothness, balance and precision.

CHAMBER-COUPLED PORT DESIGN

This JL Audio port design wraps around the inner enclosure boundary and terminates just above the woofer, coupling the port output to the woofer’s direct output. This also provides the necessary surface area and port length to maximize the performance of the W7AE driver.

SIMPLIFIED INSTALLATION

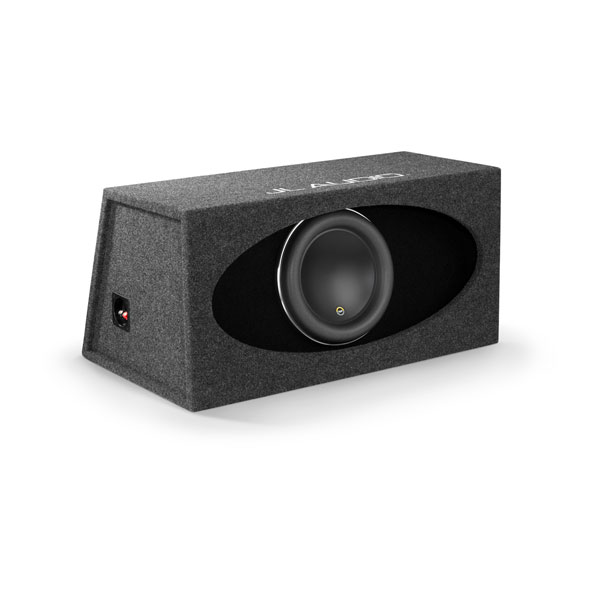

The H.O. Wedge subwoofer system comes wired, loaded and ready to connect via a 5-way binding post terminal. For added protection, the sturdy MDF enclosure is finished in high-grade automotive carpet with “JL AUDIO” embroidered in silver on the top surface.

POWERFULLY ADAPTABLE

On a wide range of car audio applications, the W7AE series subwoofers deliver superb sound when powered by an amplifier in the 400- to 1000-watt range.

W7AE SUBWOOFER TECHNOLOGIES

DMA-OPTIMIZED SPEAKERS

Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.

W-CONE TECHNOLOGY

Using two lightweight mineral-filled polypropylene skins bonded in a unique W-cone design, the W7AE series subwoofer combines extreme durability and moisture-resistance with extra rigidity for powerful bass performance.

ELEVATED FRAME COOLING TECHNOLOGY

This patented frame cooling design creates a pathway for high-velocity air to flow directly across the top plate of the speaker voice coil — cooling it for better power handling and improved reliability.

ENGINEERED
LEAD-WIRE SYSTEM

Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

FCAM TECHNOLOGY

This “floating cone attach method” of bonding the surround/cone assembly to the voice coil former/spider structure ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

OVERROLL SURROUND TECHNOLOGY

By utilizing space wasted in conventional speakers, this ground-breaking innovation controls the W7’s massive excursion without sacrificing precious cone area.

RADIAL CROSS-DRILLED POLE-PIECE

Through machined holes on the outer wall of the pole-piece, this innovative venting system enhances thermal dissipation and power handling by directing air flow onto the voice coil former, working in conjunction with the Elevated Frame Cooling technology to effectively remove heat from the voice coil.

General
Warranty	2 years
Sizes	12"
Physical dimensions (Height)	17" (432 mm)
Physical dimensions (Width)	34" (864 mm)
Physical dimensions (Depth)	Top: 14.5" (368 mm) Base: 20.5" (521 mm)
Weight	119 lbs (53.95 kg)
Continuous power handling (RMS)	1000 W
Nominal impedance	3 Ω
Recommended amplifier power (RMS)	400-1000 W
Cone material	Mineral-filled polypropylene
Enclosure type	Chamber-coupled, slot-ported, rear-firing design
Networking & Connections
Speaker connections	Five-way binding post terminal

Ported high output enclosure containing one subwoofer
