Signal RM 100 | Marine VHF Remote Station | Marine

Garmin Signal RM 100

Part Number 010-02952-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

YOUR REMOTE COMMUNICATION SOLUTION

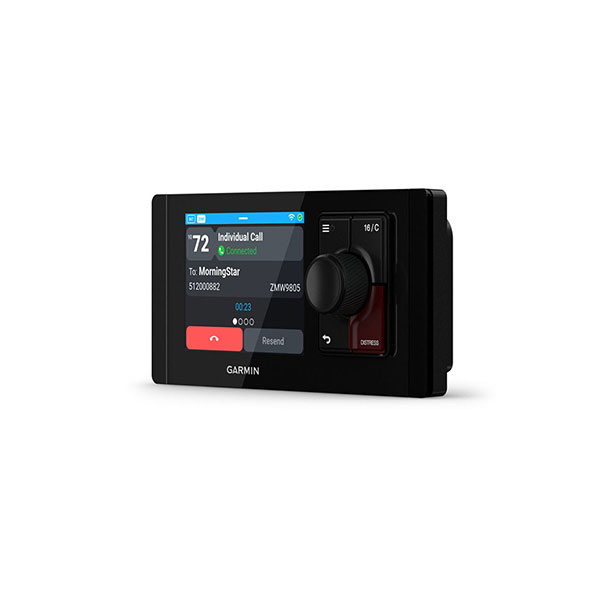

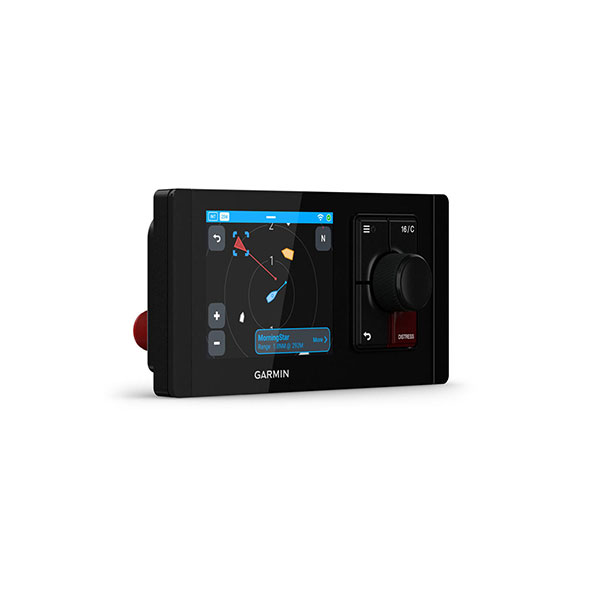

The Garmin Signal RM 100 remote station lets you control your compatible VHF marine radio from a secondary helm or flybridge. Enjoy remote control access to VHF, DSC, AIS and other Garmin Signal VHF radio functions with this premium fixed-mount remote station.

WORKS WITH GARMIN SIGNAL VHF RADIOS VIA THE GARMIN BLUENET NETWORK

INTERCOM LINKS REMOTE STATION AND NETWORKED HEAD UNITS

BRIGHT 3.5-INCH COLOR TOUCHSCREEN DISPLAY

MODERN EDGE-TO-EDGE GLASS DESIGN

COMPACT FORM FACTOR AND REDUCED MOUNTING DEPTH

INCLUDES FIST MIC AND BUILT-IN ADAPTIVE NOISE CANCELLATION

WHAT YOU'LL LOVE

GARMIN BLUENET NETWORK

This remote station connects to your Garmin Signal VHF 400 or 220 radio via a single Garmin BlueNet Network connection for easy setup and installation.

TOTAL CONTROL

Control VHF, DSC, AIS and other radio functions from a secondary helm or flybridge. The intercom feature enables communication between remote station and networked head units.

MODERN HELM CONFIGURATION

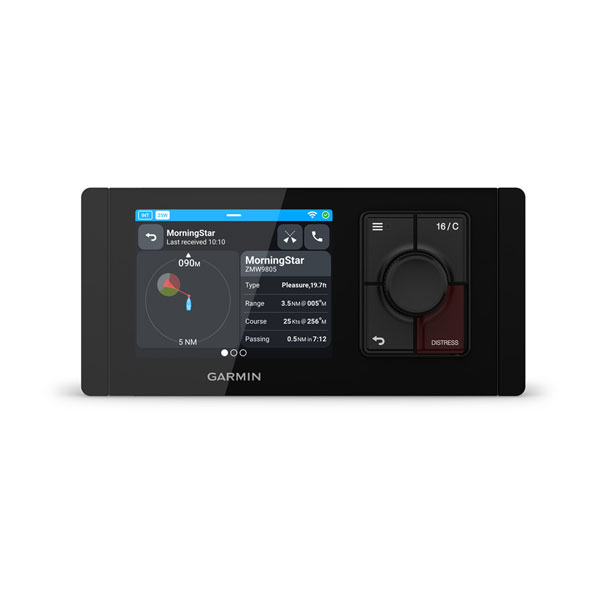

Featuring an edge-to-edge glass design and bright 3.5-inch color touchscreen display, it looks great installed at your helm, and the form factor matches the Garmin Signal VHF marine radios.

FIST MIC

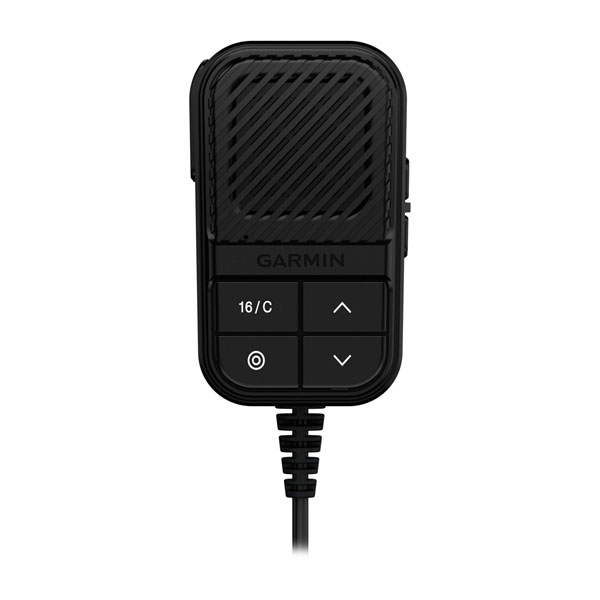

The included fist mic with built-in adaptive noise cancellation provides superior audio clarity in high winds or rough seas.

BUILT FOR LIFE AT SEA

Garmin Signal RM 100 is built for harsh marine environments with IPX6 and IPX7 ratings.

General
Unit size	Head Unit: 75 x 160 x 29 mm (3.0" x 6.3" x 1.2") Fist Mic: 100 x 60 x 31 mm (3.9" x 2.4" x 1.2")
Weight	Head Unit: 0.53 lb (240 g) Fist Mic: 0.54 lb (245 g)
Operating voltage	9.6 - 32 VDC
Water rating	IPX7
Display Type	color IPS LCD, capacitive touch
Display Size	3.5" (89 mm)
Display Resolution	640 x 480 pixels
Operating temperature	–20° to 55°C (–4° to 131°F)
Backlight	1,000 nits
Multi-language interface	yes
VHF Features
Adaptive noise cancellation	yes
Audio record and playback	yes
Auto squelch	yes
Dual/Tri watch	yes
Presets watch	yes
NOAA weather alert	yes
NOAA weather watch	yes
Intercom support	yes
AIS target display	yes
AIS collision and MOB alarms	yes
Audio
Max speaker output power	Fist Mic: 5 W RMS, < 1% THD
External speaker	yes
Max external speaker output power	15 W RMS, < 1% THD, 4 Ω
Tactical Features
Night vision mode	yes
Electrical Features
Typical current draw at 12 Vdc	Head Unit: 400 mA, 1.8 A max Fist Mic: 90 mA, 0.9 A max
Compass safe distance	Head Unit: 70 cm (27.6") Fist Mic: 40 cm (15.8")
Networking & Connections
Garmin Marine Network	GMN 1.0/2.0

Garmin Signal^™ RM 100 head unit
Fist mic
Sun cover
Remote station power and external audio cable with fuse (2 m)
Fist mic power cable with fuse (2 m)
Cable for Garmin BlueNet^™ network (6 m)
Mounting hardware
Mounting template
Documentation
