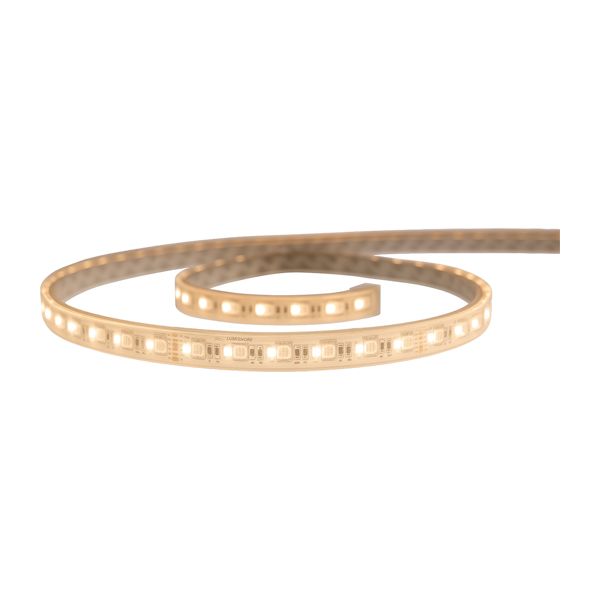

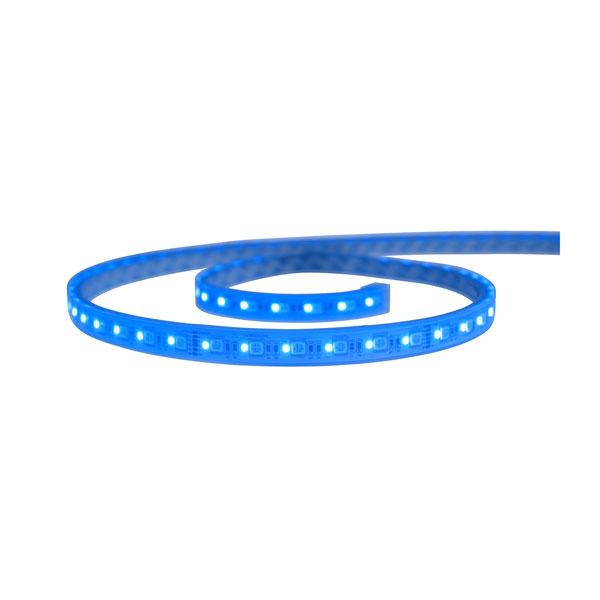

FLEXIBLE, FULL-COLOR MARINE STRIP LIGHTING

These strip lights deliver vivid, tunable CRGBW illumination and can be seamlessly integrated into gunwales, under furniture and behind ceiling panels for extra mood lighting while remaining mostly hidden.

FULL-COLOR CRGBW LIGHTING

PLUG-AND-PLAY INSTALLATION

60 CRGBW LEDS PER METER

CONTROL VIA COMPATIBLE MFD, LUMISHORE DISPLAY, SMART DEVICE OR MOMENTARY SWITCH¹

IP68-RATED FOR DUST AND WATER PROTECTION

3-YEAR WARRANTY

¹The momentary switch control requires the Strip Driver; the MFD, Lumishore display and smart device control require the EOS-LUX Command Center

General
Warranty	3 years
LED colors	CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture
LED type	60 CRGBW/m
Length of strip per strip driver	up to 10 m total
Electrical installation	Plug and play
Operating voltage	10.5-31 VDC (via LUX Control Module)
Current consumption 12 V (max)	0.6 A/m (via Strip Driver)
Current consumption 24 V (max)	0.36 A/m (via Strip Driver)
Average power draw	8.7 W/m
Construction	Fully encapsulated and potted
Water and dust rating	IP68
Control Options
Momentary switch	yes (via Strip Driver)
EOS-LUX Command Center
Compatible MFD	yes (via EOS-LUX Command Center)
Smart device	yes (via EOS-LUX Command Center)
EOS-LUX-SUPRA Display	yes (via EOS-LUX Command Center)
Mounting Dimensions
Dimensions (depth)	0.197" (5 mm)
Dimensions (height)	0.571" (14.5 mm)
Mechanical installation	Mount with adhesive strips, screw clips (supplied) or stainless steel clips (optional)

LUX SL180 strip light (based on selection)
Pack of fixing clips
