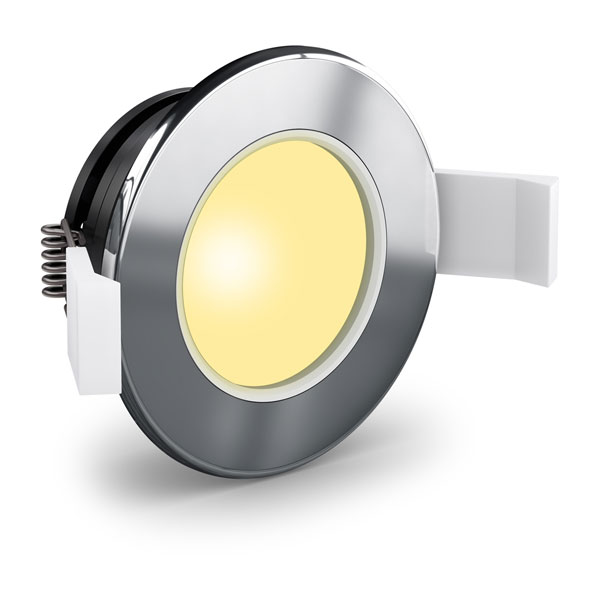

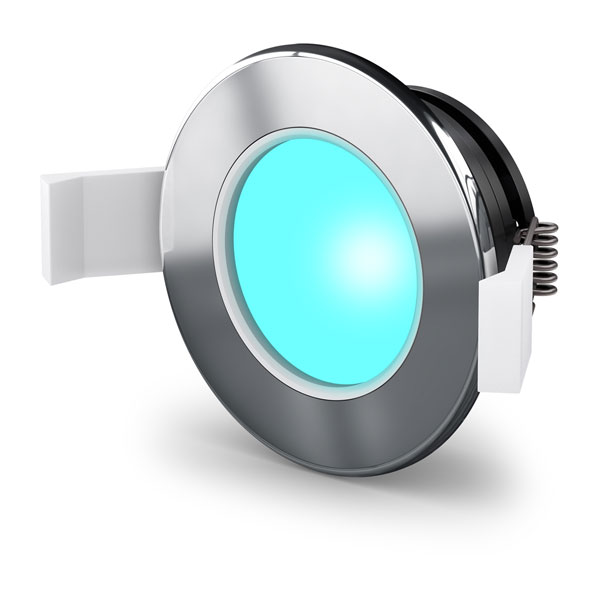

Lumishore LUX DL65

CRGBW Anti-glare Downlight, Chrome Bezel

Part Number 010-04439-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

POWERFUL, TUNABLE DOWNLIGHTING

These downlights deliver powerful, dimmable CRGBW illumination for any onboard space — indoors or outdoors. Available in both standard and anti-glare models, they fit a wide range of uses, with the latter option ideal for lower ceilings or anywhere that softer lighting is preferred.

FULL-COLOR CRGBW LIGHTING

2,700–6,500 K TEMPERATURE TUNABLE

SIMPLE 3-WIRE INSTALLATION

CONTROL VIA COMPATIBLE MFD, LUMISHORE DISPLAY, SMART DEVICE OR MOMENTARY SWITCH¹

PROTECTED AGAINST DUST AND WATER

3-YEAR WARRANTY

¹The momentary switch requires a LUX Control Module; the MFD, Lumishore display or smart device requires the EOS-LUX Command Center

General
Warranty	3 years
LED colors	CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture
LED type	2 x 3 W Red 2 x 3 W Green 2 x 3 W Blue 2 x 3 W Cold White 2 x 3 W Warm White
Beam angle	ultra wide (standard), anti-glare (wide)
Number of lights per LUX light control module	16 maximum
Electrical installation	3 wire
Operating voltage	10.5-31 VDC (via LUX Control Module)
Current consumption 12 V (max)	0.6 A
Current consumption 24 V (max)	0.3 A
Average power draw	7.2 W
Construction	Stainless steel bezel with hard anodized aluminum body
Water and dust rating	IP68 (standard), IP65 (anti-glare)
Control Options
Momentary switch	yes (via LUX Control Module)
EOS-LUX Command Center
Compatible MFD	yes (via EOS-LUX Command Center)
Smart device	yes (via EOS-LUX Command Center)
EOS-LUX-SUPRA Display	yes (via EOS-LUX Command Center)
Mounting Dimensions
Mounting diameter clearance (with bezel)	3.23" (82 mm)
Mounting depth clearance	1.19" (30 mm)
Frontal protrusion (profile)	0.13" (3 mm)
Mounting hole	2.56" (65 mm)
Mechanical installation	Internal location: Stainless steel spring clips External location (not applicable to anti-glare): Marine adhesive (not supplied)
