GMI 40

Marine Instrument

Part Number 010-03411-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

ALL DATA ON DECK

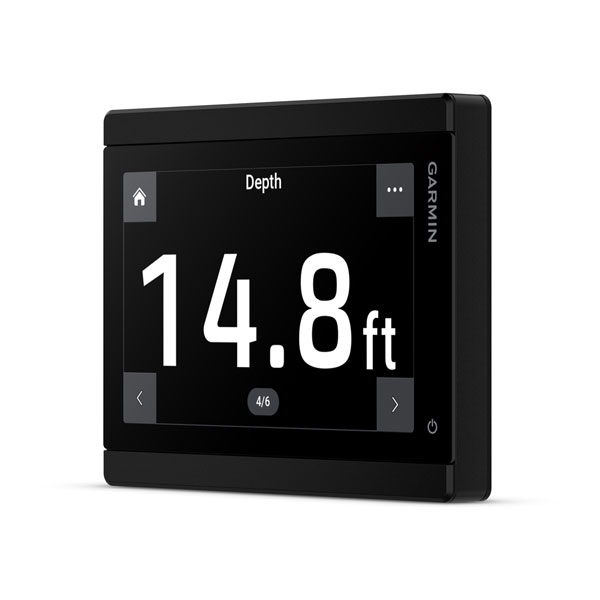

GMI 40 is the compact, easy-to-use multipurpose marine instrument that provides real-time data from your compatible devices on its high-resolution touchscreen display.

HIGH-RESOLUTION 4.3-INCH TOUCHSCREEN DISPLAY

EASILY CONNECTS TO ONBOARD SENSORS AND ENGINES

DISPLAYS REAL-TIME WIND, SPEED, DEPTH, HEADING, ENGINE, FUEL DATA AND MORE FROM YOUR COMPATIBLE DEVICES

INTEGRATES WITH NMEA 2000 AND GARMIN BLUENET NETWORKS

SOFTWARE UPDATES VIA ACTIVECAPTAIN SMARTPHONE APP

WIRELESSLY SHARES DATA TO YOUR GARMIN MARINE SMARTWATCH

WHAT YOU'LL LOVE

SLEEK AND STREAMLINED

This modern touchscreen display has an intuitive interface and edge-to-edge glass that complements the look of your Garmin chartplotters.

COMPLETELY INTEGRATED

As an NMEA 2000 certified device, your GMI 40 marine instrument integrates smoothly with compatible systems across your boat.

SIMPLE YET CUSTOMIZABLE

Flexible gauge sets and page layouts let you place the data you need exactly where you want it.

A NETWORK YOU CAN TRUST

Garmin BlueNet offers streamlined connectivity with compatible Garmin devices for full-system integration.

SEAMLESS DATA

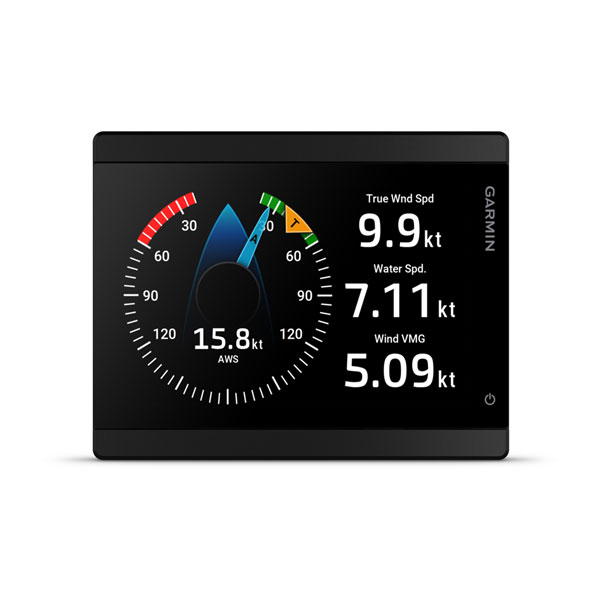

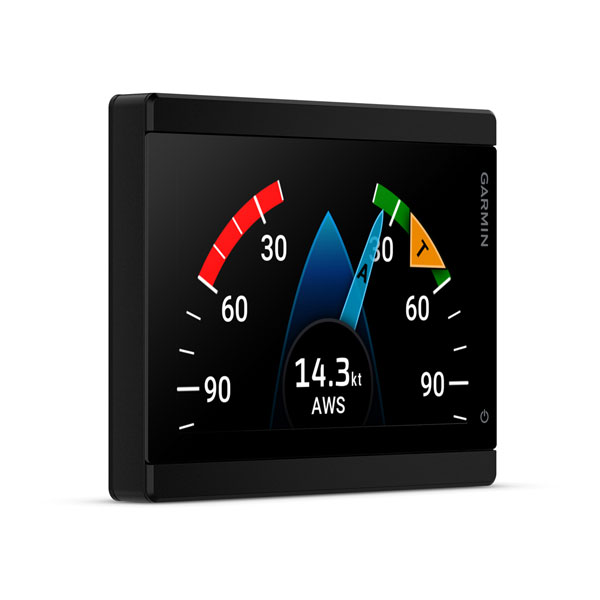

See the shift before you feel it with easy-to-read real-time wind, speed, depth and heading insights from your compatible devices.

SIMPLIFIED ENGINE DATA

See engine and fuel data from your compatible devices at a glance to easily monitor levels and optimize performance.

General
Dimension	4.53" x 3.58" x 1.18" (115 mm x 91 mm x 30 mm)
Weight	0.53 lbs (240 g)
Water rating	IPX7
Display Type	WVGA, IPS LCD
Display Size	4.3" diagonal; 3.68" x 2.21" (109 mm diagonal; 93.6 mm x 56.2 mm)
Display Resolution	800 x 480 pixels

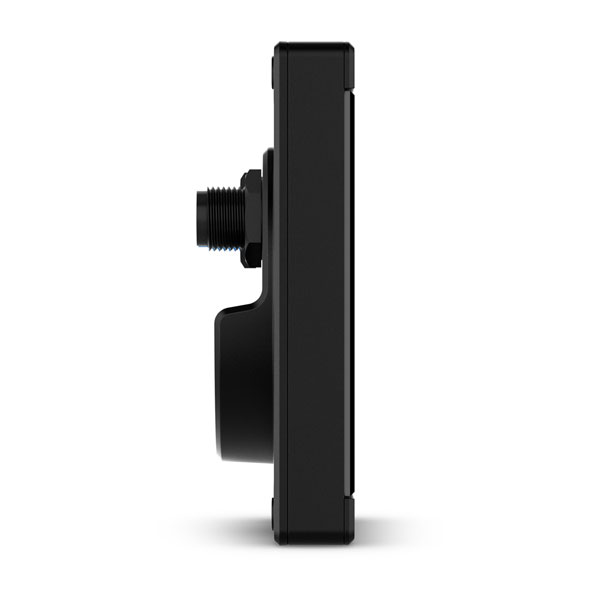

Mounting Options	Flush mount
Input	Touchscreen
Glass bonded display	yes
Temperature range	From 5° to 158° F (from -15° to 70° C)
Sensors
NMEA 2000 certified	yes (LEN = 11)
Electrical Features
Voltage range	9 to 32 Vdc
Power Consumption	2.5 W typical; 4.4 W max
Compass safe distance	5.9" (150 mm)
Networking & Connections
Garmin BlueNet network ports	1
Instrument Features
Audible alarms
Auto-on	yes
Profiles	yes

GMI^™ 40 marine instrument
Black trim piece snap cover
Protective cover
For the NMEA 2000^® network: 2 m backbone/drop cable and T-connector
Mounting hardware
Documentation
