Bronze Thru-hull Mount Transducer with Depth & Temperature - Airmar B265LH
Discontinued

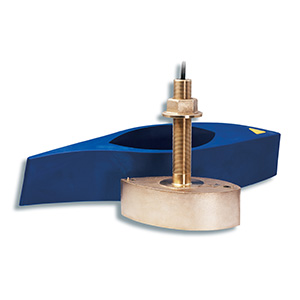

Bronze Thru-hull Mount Transducer with Depth & Temperature - Airmar B265LH

Part Number 010-12379-20

ONLINE STORE

Images-1

This best performing 1 kW thru-hull transducer, this mount performs well in deep water and has exceptional bottom and water column detail. This transducer has a depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees and 6 to 10 degrees; and a 0 to 20 degree deadrise. Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

General

FREQUENCY CHIRP 42-65 kHz & 130-210 kHz
POWER 1 kW
BEAMWIDTH 16°-25°/6°-10°
MAXIMUM DEPTH 3,000 ft.
DEPTH/SPEED/TEMPERATURE Depth and Temperature
NUMBER OF PINS 12-pin
CABLE LENGTH 39 ft.
SUPPORTED DEADRISE/TRANSOM ANGLES 0°-20° degree deadrise
