Discontinued

GDR E560

Part Number 010-01750-52

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

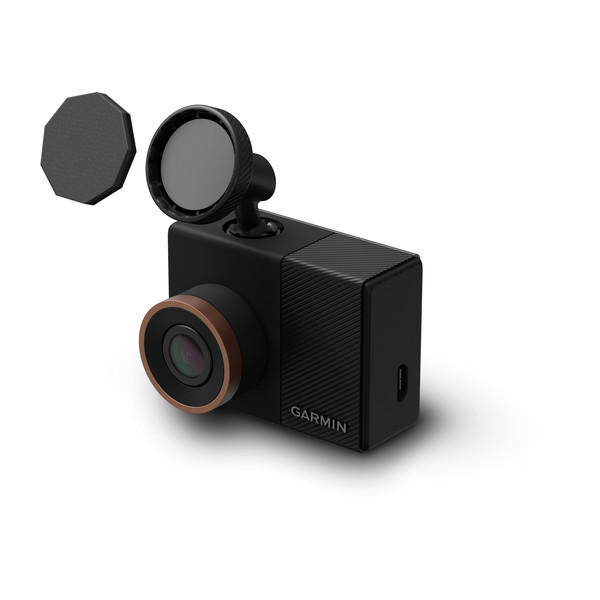

Compact and Discreet GPS-enabled Driving Recorder Plus Voice Control

Small and inconspicuous when mounted on windshield
High-quality 3.7 megapixel camera with 1440p video capture; works even in low-light conditions
Forward collision and lane departure warnings¹ plus alerts for nearby speed cameras²
GPS-enabled with automatic incident detection (G-Sensor) saves video footage on impact to show when and where events happened
Voice control allows you to start/stop recording, take a still picture or start/stop the Travelapse™ photo capture feature

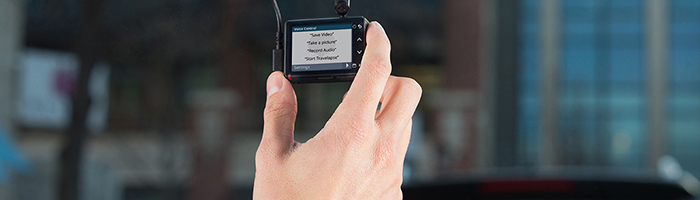

Control It with Your Voice

Command dash cam with your voice, and keep your hands on the wheel. Say “OK, Garmin” to save video, take a picture, start/stop audio recording and start/stop the Travelapse feature.

Records High-quality 1440p HD Video

GDR E560 is an easy-to-use high-definition driving recorder with 2.0” LCD display. With a wide-angle lens, it captures the entire road and includes GPS for detailed time and location data, pinpointing exactly where and when events happened.

Rely on your GDR E560 to capture excellent video detail in both bright and low-light conditions. Mount the camera to your windshield, and record your drive in 1440p.

GDR records in a continuous loop, using the replaceable microSD™ card slot (accepts up to 64 GB, sold separately; Class 10 required). Play back the footage right on the display or review later on your computer.

Your Eyewitness That Never Blinks

No need to worry about starting and stopping. If GDR E560 is plugged into a powered source, it starts recording automatically and saves footage in case of incidents.

All footage is stamped with time and location so you know exactly when and where events happened. When reviewing footage on your computer, you’ll have a record of latitude, longitude, date, time, speed and direction of travel.

GDR features automatic incident detection (G-Sensor) so when an incident is detected, your camera knows to save the current, last and next recordings, thereby preserving a complete record of the event.

For a close-up view of vehicle or property damage, you can remove GDR E560 from your vehicle and take snapshots.

Share the Drive with Travelapse™

The Travelapse photo capture feature provides an easy and fun way to record and share your adventures by condensing hours of driving into minutes of highlights.

Wirelessly Sync Videos to Your Smartphone

GDR E560 has built-in Wi-Fi® so you can wirelessly sync videos to your compatible smartphone after downloading the free VIRB® App. This makes it easy to share videos with friends, insurance agencies or legal authorities.

Drive with Increased Awareness

GDR E560 features helpful driver awareness warnings to help encourage safer driving. The forward collision warning alerts if you drive too closely to the car ahead.
Lane departure warnings alert you if you stray from your lane. The speed cameras warning alerts you to nearby speed cameras.

And when your vehicle is stopped at an intersection or in traffic, the “Go” alert notifies you when traffic ahead of your vehicle is moving again.

Monitor Your Parked Vehicle

Parking mode monitors your car’s surroundings while your car is parked and the engine is not running. It automatically begins recording if and when motion is detected.
(Requires Garmin parking mode cable, sold separately; professional installation recommended.)

¹Certain conditions may impair the warning function. Visit Garmin.com/warnings for details.
²Speed camera warnings are not available in all regions.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

To prevent data loss or low battery level, please use the Micro-USB cable that was provided with your device.

Manual Download SD card compatibility list

Physical & Performance
Dimensions (WxHxD)	5.62 × 4.05× 3.53 cm
Weight	59.5 g
Screen	2.0” 320 x 240 TFT LCD
Lens	f/2.0
Sensor	3.7MP
Shooting range	Diagonal viewing angle at 126 degrees
Frame rate	30 FPS
video format	MP4 (H.264)
Voice control
GPS
Loop recording
Travelapse™
Wi-Fi
Speed camera warnings	(only available in Singapore)
Gravity sensor
Battery life	Up to 30 minutes
Microphone
Memory card	Up to 64 GB microSD card, requires Class-10/UHS-1 microSD™ card (not included)
Operation temperature	-20 to 55 degrees Celsius

GDR E560
Low profile magnetic mount
Vehicle power cable
USB cable
Quick start manual

To prevent data loss or low battery level, please use the Micro-USB cable that was provided with your device.
