Discontinued

ECHOMAP Ultra 122sv

Part Number 010-02113-01

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

Equipped with Our Premium Sonar Capabilities

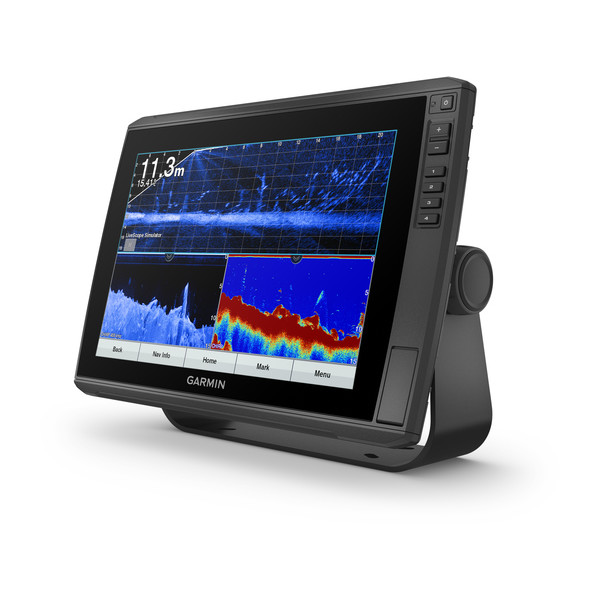

12” keyed-assist touchscreen combo includes all-in-one transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars
Built-in support for the full line of Panoptix sonars and the Panoptix LiveScope scanning sonar system, including Panoptix LiveScope LVS12 sonar
Share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units
Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
Built-in Wi-Fi connectivity pairs with the free ActiveCaptain app
NMEA 2000 connectivity and support for heading sensors, autopilots, digital switching, weather, FUSION-Link audio system and more
Support Asian languages with Simplified Chinese, Traditional Chinese, Japanese, Korean and Thai

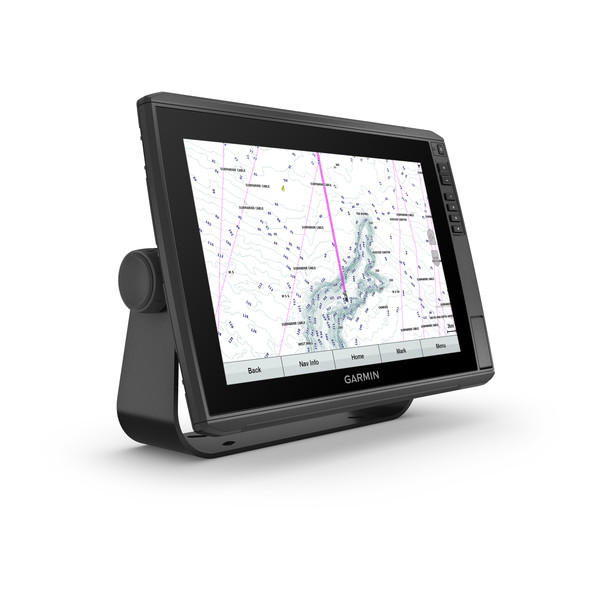

The ECHOMAP Ultra 122sv combo, with its bright, sunlight-readable 12” keyed-assist touchscreen display, has all the tools you need for successful fishing. It includes an all-in-one transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars. It also supports optional premium BlueChart g3 charts and BlueChart g3 Vision cartography with integrated data from Navionics.

Our Premium Sonar Support

Panoptix Sonar Support

The ECHOMAP Ultra 122sv combo also supports optional Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix all-seeing sonar transducers. It also supports the Panoptix LiveScope system.

Share Sonar, Waypoints and Routes

Have more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units.

Our Premium Sonar Support

Quickdraw Contours to Create Your Own Maps

Instantly create personalized fishing maps on-screen with 1’ contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect, our online community.

Our Premium Sonar Support

Upgrade to the Best Maps on the Water³

Upgrade the preloaded worldwide basemap to optional premium BlueChart g3 charts or BlueChart g3 Vision cartography with integrated data from Navionics, which add Auto Guidance¹ technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.

Our Premium Sonar Support

The Ultimate Connected Boating App

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw Contours Community. Stay connected with smart notifications² on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Take Your ECHOMAP Ultra with You

When you’re off the water, it’s easy to keep your ECHOMAP Ultra combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations
²When paired with a compatible smartphone; see Garmin.com/ble
³ BlueChart g3 charts and BlueChart g3 Vision cartography are available for the U.S., Canada and Europe. Asia version will be released in Q4 2019.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Manual Download

General
Physical dimensions	13.4" x 9.0" x 3.9" (341 x 229 x 98 mm)
Display size	10.3” x 6.4”; 12.1" diagonal (26.1 cm x 16.3 cm; 30.7 cm diagonal)
Display resolution	1280 x 800 pixels
Display type	WXGA display
Weight	5.5 lbs (2.5 kg)
Water rating	IPX7
Polarized Support
Power consumption	26 W
Antenna	Internal only
Mounting options	Bail or flush
Receiver	10 Hz
Garmin Marine Network ports	2 (large connector)

Maps & Memory
Accepts data cards	2 microSD cards
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks

Outdoor Recreation Features
Tide tables

Chartplotter Features
Garmin Sonar compatible
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Supports FUSION-Link compatible radios
GCV Black Box sonar support
ActiveCaptain compatible
Sailing Features

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Transmit power	600W (RMS) / 4,000 W (peak to peak)
CHIRP sonar technology	(Built-in)
ClearVü
SideVü
Maximum depth	2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind

Connections
NMEA 2000® compatible
Transducer pin numbers	12
NMEA 0183 input ports	1
NMEA 0183 output ports	1
Wireless connectivity

ECHOMAP Ultra 122sv with worldwide basemap
GT54UHD-TM transducer
Power/data cable
Tilt mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation
