ECHOMAP™ Plus 95sv

Part Number 010-01903-30

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

The Combo with Connections

Bright, sunlight-readable 9” keyed-assist touchscreen combo
Built-in support for Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars and Panoptix™ all-seeing sonar (transducers sold separately)
Preloaded worldwide basemap; compatible with BlueChart® g2 HD and BlueChart® g2 Vision® HD compatibility
Built-in Quickdraw Contours mapping software instantly creates personalised fishing maps on-screen with 1’ contours as you fish
Use built-in Wi-Fi® to pair with the free ActiveCaptain™ app for access to OneChart™, smart notifications¹, Garmin Quickdraw™ Community data and more

Bright, sunlight-readable 9” combo offers the convenience of a keyed-assist touchscreen. Includes support for crisp, clear Garmin CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonars, and it’s also compatible with Panoptix all-seeing sonar. Preloaded worldwide basemap and BlueChart g2 HD and BlueChart g2 Vision HD compatibility. Plus, Quickdraw Contours mapping software to instantly create personalized fishing maps on-screen with 1’ contours as you fish. It also has built-in Wi-Fi® to pair with the free ActiveCaptain app for access to OneChart, which allows you to purchase and download new charts. ActiveCaptain also gives you access to smart notifications1, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more. Features quick-release bail mount to make it easy to remove and take with you.

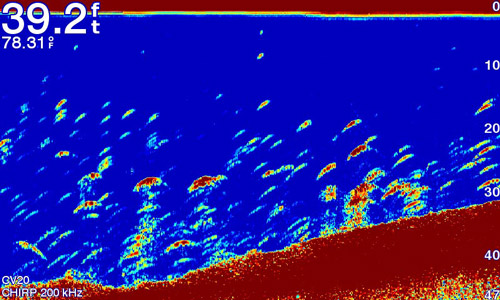

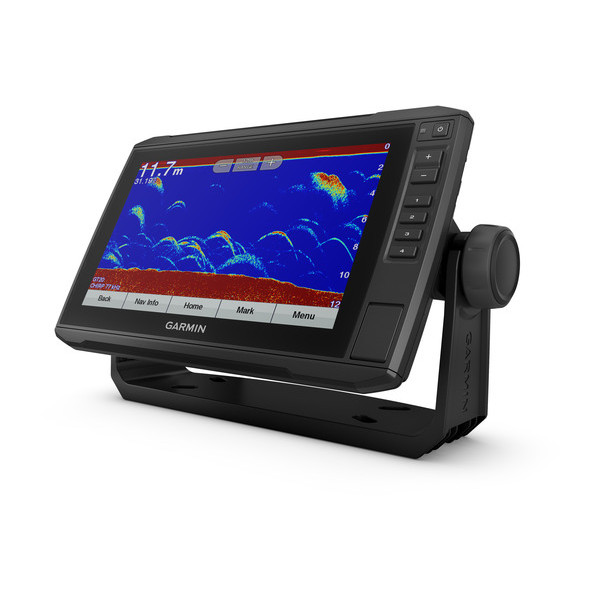

The Garmin CHIRP Difference

The built-in sonar capabilities of ECHOMAP Plus 95sv include our CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota® and MotorGuide®trolling motors with integrated transducers.

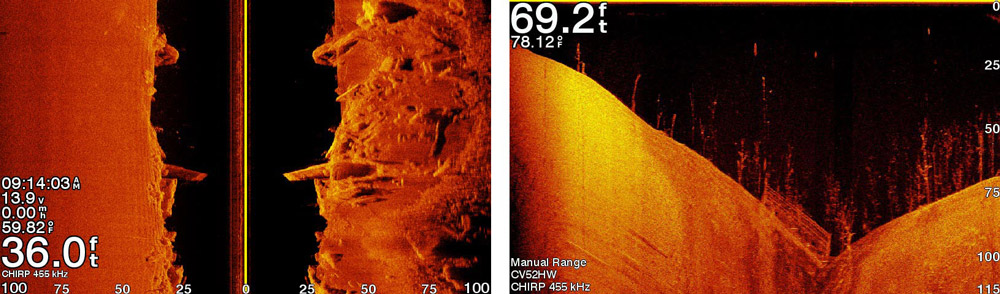

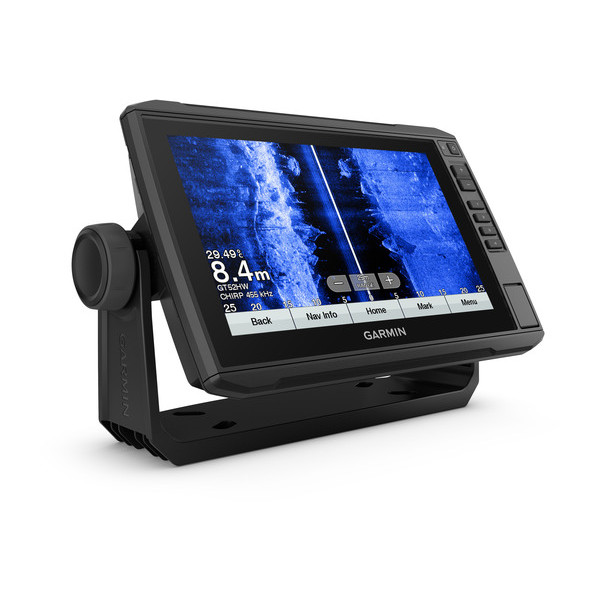

Clear Scanning Sonar Images

Garmin CHIRP ClearVü scanning sonar gives you a nearly photographic image of what’s below your boat. Garmin CHIRP SideVü shows you in incredible detail, what lies off to the sides of your boat. You clearly see structure, submerged objects and fish.

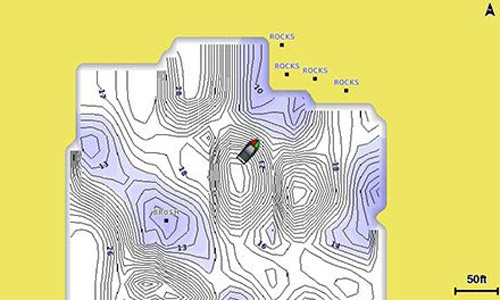

Quickdraw Contours to Create Your Own Maps

Instantly create personalized fishing maps on-screen with 1’ contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

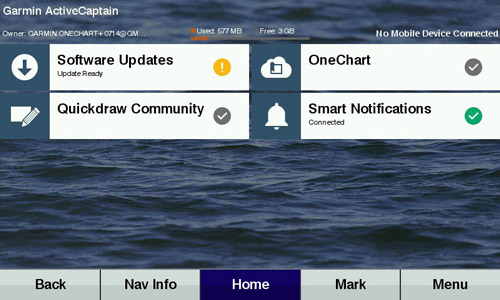

Get Connected with ActiveCaptain App

Our free all-in-one ActiveCaptain app allows you to manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your chartplotter, charts, maps and the community. Use the combo’s built-in Wi-Fi® to pair with the free ActiveCaptain app for access to OneChart, which allows you to update or purchase and download new charts. ActiveCaptain also gives you access to smart notifications1, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more.

SailAssist Features

SailAssist features include laylines, enhanced wind rose and heading and course-over-ground lines. See true and apparent wind angle and speed as well as set and drift and a glance. To help you gain a wind-maximizing competitive edge, a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer.

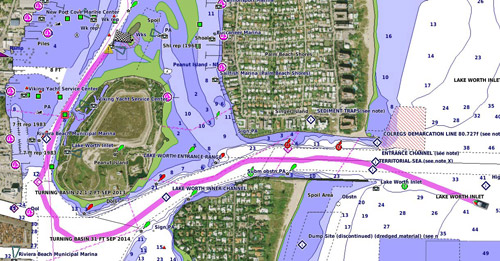

Upgrade to Our Best Maps on the Water

Step up to LakeVü HD, LakeVü HD Ultra with Max Def Lakes, BlueChart g2 HD or BlueChart g2 Vision HD, which adds Auto Guidance² and other great features. A single microSD™ card slot provides expandable memory for accessory map purchases. Or purchase maps with OneChart through the ActiveCaptain app and automatically sync with your compatible chartplotter, eliminating the need for an SD card.

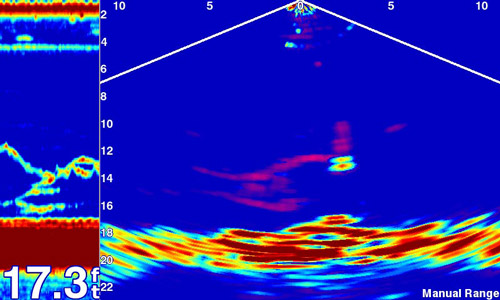

See Fish Swimming in Real Time

Add optional Panoptix all-seeing sonar transducer and see all around your boat and below it — in real time, even while your boat is stationary. See your lure as it sinks, relative to structure in the water. Watch the movement of fish — and their reactions to your bait — up to 100’ away or below the boat.

NMEA 2000® Network Support

Provides NMEA 2000 support for engine data, sensors, FUSION-LINK™ audio system, autopilots and more.

Take Your ECHOMAP Plus with You

When you’re off the water, it’s easy to keep your ECHOMAP Plus combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your ECHOMAP Plus from power and the mount.

¹When paired with a compatible mobile device.
²Auto Guidance is for planning purposes only and does not replace safe navigation operations.
Wi-Fi® is a registered trademark of the Wi-Fi Alliance.

Owner's Manual Installation Instructions

General
Physical dimensions	11.4" x 6.5" x 2.4" (28.2 x 16.4 x 6.0 cm)
Weight	2.3 lbs (1.0 kg)
Water rating	IPX7
Display type	WVGA display
Display size	7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
Display resolution	800 x 480 pixels
Power consumption	18W
Antenna	Internal_or_external_over_NMEA_2000
Mounting options	Bail or flush
Receiver	5 Hz
Garmin Marine Network™ ports	1 Panoptix™ port

Maps & Memory
Accepts data cards	1 microSD™ card; 32 GB maximum card size
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks
Preloaded maps

Outdoor Recreation Features
Tide tables

Chartplotter Features
Garmin Sonar compatible
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Supports FUSION-Link™ compatible radios

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Frequencies supported	CHIRP (low, mid, high)
	Traditional: 50/77/83/200 kHz
	ClearVü: 260/455/800 kHz
	SideVü: 260/455/800 kHz
Transmit power	500 W (RMS) / 4,000 W (peak to peak)
CHIRP sonar technology	(Built-in)
ClearVü	with CHIRP (built-in)
SideVü	with CHIRP
Maximum depth	2,300 ft @ 77 kHz, freshwater
	1,100 ft @ 77 kHz, saltwater
	(depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind

Connections
NMEA 2000® compatible
Transducer pin numbers	12
NMEA 0183 input ports	1
NMEA 0183 output ports	1
Video input ports
Video output ports
Wireless connectivity

ECHOMAP Plus 95sv with worldwide basemap
8-pin transducer to 12-pin sounder adapter cable
Power/data cable
Tilt mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation
