JL Audio C6 Car Speakers

6.5" Three-way Component Speaker System (C6-653)

Part Number 010-03846-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

PRECISE CAR AUDIO FIDELITY AND PERFORMANCE

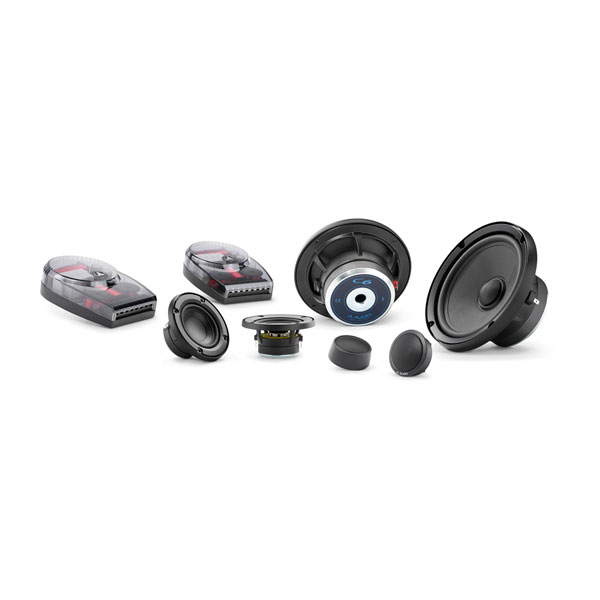

Born from the same DNA as our flagship JL Audio C7 speakers, the C6 series component system combines the smoothness and transparency of a premium silk dome tweeter with a top-flight 6.5-inch woofer to create a loudspeaker system with exceptional refinement and dynamic capability.

ENJOY CRISP, POWERFUL MIDBASS IMPACT WITH ULTRALOW DISTORTION

SOLD AS TWO-WAY OR THREE-WAY COMPONENT SYSTEMS

C6 COMPONENT SYSTEMS INCLUDE ADJUSTABLE PASSIVE CROSSOVER NETWORKS

CAST-ALLOY WOOFER DESIGN FEATURES ELEVATED FRAME COOLING^™ TECHNOLOGY

SPEAKER SYSTEM INCLUDES MESH GRILLES AND MOUNTING FIXTURES

1-YEAR WARRANTY

WHAT YOU'LL LOVE

PREMIUM AUDIO QUALITY

Pairing a full-frame 6.5-inch woofer with a 1-inch silk dome tweeter, the C6 series offers advanced sound technology for an exceptional car audio listening experience. When purchased as a component system, premium passive crossover networks are included with the speakers.

DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality. The woofer’s center cap is designed to optimize its high-frequency response for seamless tweeter transition.

SILK DOME TWEETERS

An edge-driven pure silk dome tweeter design, when paired with the C6 woofer, produces sparkling detail with excellent off-axis response and damping for balanced coverage in your listening environment. An automatic, solid-state tweeter protection circuit minimizes the possibility of tweeter failure.

PASSIVE CROSSOVER NETWORKS

Included with each C6 component system, these premium filter networks offer 4 levels of tweeter adjustment. The three-way component system includes an additional 4 levels of midrange adjustment. All incorporate polyester film and electrolytic capacitors as well as low-loss air-core inductors — all accessible beneath a protective polycarbonate cover.

ADVANCED FRAME DESIGN

Benefiting from years of woofer design experience, the robust JL Audio 6.5-inch C6 component speakers feature purpose-engineered cast-alloy frames outfitted with our Elevated Frame Cooling technology.

POWERFULLY ADAPTABLE

On a wide range of car audio applications, the C6 speaker system delivers superb sound when powered by an amplifier in the 25- to 150-watt range. The woofer’s oversized voice coil offers extended power handling capability while minimizing thermal compression and distortion at higher volume levels.

General
Sizes	6.5"
Continuous power handling (RMS)	100 W
Sensitivity (SPL @ 1 W/1 m)	2.75": 83.50 dB 6.5": 87.37 dB
Sensitivity (SPL @ 1 W/0.5 m)	1": 96 dB
Sensitivity (SPL @ 2.83 V/1 m)	2.75": 86.50 dB 6.5": 90.33 dB
Frequency response (+/- 3 dB)	53 Hz-21 KHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	25-150 W/Channel
Voice coil diameter	2.75": 0.8" (20.5 mm) 6.5": 1.27" (32 mm)
Cone material	Vacuum-formed, mineral-filled polypropylene
Tweeter type	Silk Dome
Tweeter size	1" (25 mm)
Grille(s) included	yes
Warranty	1 year
Networking & Connectivity
Speaker connections	Spade connectors
Mounting Dimensions
Frame outer diameter	2.75": 2.52" (77 mm) 6.5": 6.5" (165 mm)
Mounting depth clearance	2.75": 1.42" (36 mm) 6.5": 2.60" (66 mm)
Frontal grille protrusion	2.75": 0.47" (12 mm) 6.5": 1" (25 mm)
Mounting hole	2.75": 2.52" (64 mm) 6.5": 5.46" (139 mm)
Grille tray outer diameter	2.75": 3.58" (91 mm) 6.5": 6.76" (172 mm)
Bolt hole circle	2.75": 3.03" (77 mm) 6.5": 6.12" (156 mm)
Motor outer diameter	2.75": 2.75" (69 mm) 6.5": 3.54" (90 mm)
Parameters
Free Air Resonance (FS)	1": 1500 Hz 2.75": 185 Hz 6.5": 52.8Hz
Electrical “Q” (Qes)	2.75": 0.769 6.5": 0.647
Mechanical “Q” (Qms)	2.75": 7.848 6.5": 5.076
Total “Q” (Qts)	2.75": 0.700 6.5": 0.574
Equivalent Compliance (Vas)	2.75": 0.0353 cu ft (0.125 L) 6.5": 0.532 cu ft (15.069 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied)	2.75": 0.059" (1.50 mm) 6.5": 0.148" (3.75 mm)
Reference Efficiency (NO)	2.75": 0.1414% 6.5": 0.344%
Moving mass (Mms)	2.75": 4.65 g 6.5": 16.42 g
Mechanical compliance (Cms)	2.75": 0.00031 m/N 6.5": 0.000581 m/N
Magnetic strength (BL)	2.75": 5.03 N/A 6.5": 5.186 N/A
Effective piston area (SD)	2.75": 3.66 in² (0.00236 m²) 6.5": 21.4 in² (0.013807 m²)
DC resistance (RE)	1"/6.5": 3.20 Ω 2.75": 3.58 Ω
Tweeter Specifications
Flush mount fixture diameter	2.13" (54 mm)
Surface mount fixture diameter	2.11" (54 mm)
Flush mount mounting hole diameter	1.85" (47 mm)
Flush mount mounting depth	1.85" (47 mm)
Flush mount tweeter frontal protrusion	0.30" (8 mm)
Surface mount tweeter frontal protrusion	1.04" (26 mm)

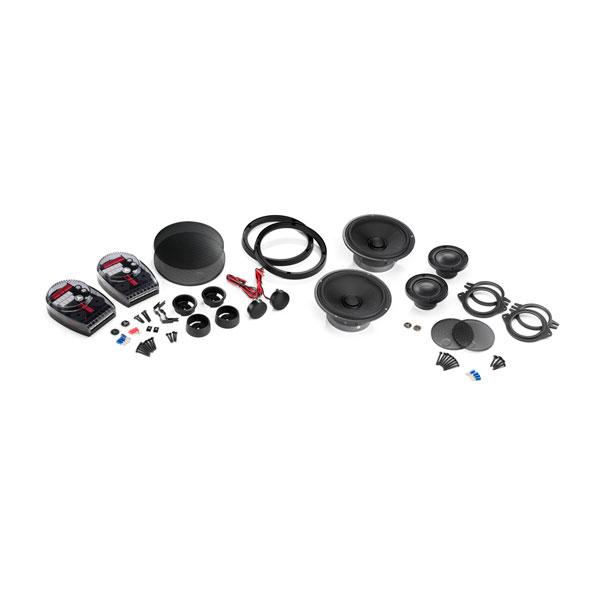

Two woofers
Two tweeters
Two crossovers
Eight speed clips
Two 0.250" female crimpable connectors
Two 0.185" female crimpable connectors
Two 0.185" male crimpable connectors
Two 0.110" male crimpable connectors
Eight 1-1/4" mounting screws
Four 1" pan head screws
Two 1" flat head screws
Two flush mount tweeter housings
Two surface mount tweeter housings
Two metal spring clips (for flush mounting)
Two M4x30 mm machine screws
Two grille frames, grilles and JL Audio logo badges

C6-653 also includes:

2 midranges
Two 0.185" female crimpable connectors
Two 0.110" female crimpable connectors
Eight 1-1/4" mounting screws
Two grille frames, grilles and JL Audio logo badges
Four OEM adapter rings

Component Tweeters (C6-100ct) include:

One tweeter
One 15 microfarad capacitor
One 0.185" male crimpable connectors
One 0.110" male crimpable connectors
One 1" flat head screw
One flush mount tweeter housing
One surface mount tweeter housing
One metal spring clip (for flush mounting)
One M4x30 mm machine screw

Component Drivers (C6-275cm and C6-650cw) include:

One midrange or woofer
One 0.185" female crimpable connector
One 0.110" female crimpable connector
Four 1-1/4" mounting screws
One grille frame, grille and JL Audio logo badge

C6-275cm also includes:

Two OEM adapter rings
