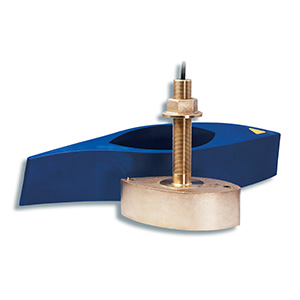

Bronze Thru-hull Mount Transducer with Depth & Temperature - Airmar B265LM

Part Number 010-11647-20

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

This best performing 1 kW thru-hull transducer, this bare wire mount performs well in deep water and has exceptional bottom and water column detail.

This transducer has a depth of 3,000 ft; an operating frequency of 42 to 65 kHz and 85 to 135 kHz; a beamwidth of 16 to 25 degrees and 11 to 16 degrees; and a 0 to 20 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

General
Transducer frequency	CHIRP 42-65 kHz & 130-210 kHz
Transducer power	1 kW
Transducer beamwidth	16°-25°/11°-16°
Transducer maximum depth	3,000 ft.
Transducer cable length	39 ft.
Transducer depth/speed/temperature	Depth and Temperature
Transducer number of pins	Bare Wire
Transducer supported deadrise/transom angles	0°-20° degree deadrise
